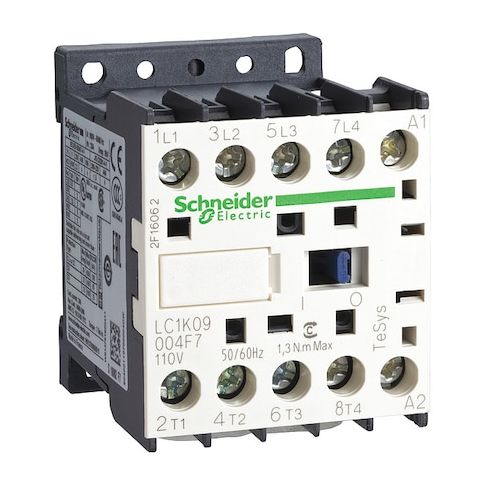

IEC Magnetic Contactor, 4NO, 110V AC, 4 P MPN:LC1K09004F7
Free Shipping
In Stock
The Schneider Electric IEC Magnetic Contactor is a reliable and efficient switching device suitable for a wide range of applications, including industrial control systems, motor control, and power distribution. Its compact and modular design makes it easy to integrate into existing systems, while its 110V AC coil and 4-pole contact configuration provide reliable and consistent switching performance. With a high making capacity and rated for use in harsh environments, this contactor is ideal for use in heavy-duty industrial settings, such as manufacturing, oil and gas, and power generation. It also features advanced safety certifications and a long lifespan.
Top product features:
- It uses an electromagnetic coil to open or close four-pole contacts, suitable for switching applications within specified electrical parameters.
- It has a 110 V AC coil for control.
- It is rated for operation within the specified voltage and current ranges according to applicable standards.
Top product applications:
- Motor Control
- Industrial Automation
- Power Distribution
The Schneider Electric IEC Magnetic Contactor, 4NO, 110 V AC, 4P, is an electrically operated switching device rated for operation within specified voltage and current ranges. It uses an electromagnetic coil to open or close four-pole contacts, suitable for switching applications within specified electrical parameters. This compact, modular contactor is part of the LC1K series and is equipped with auxiliary contacts as specified, with a 110 V AC coil for control.
Key features:
- - Coil voltage: 110 V AC (AC 50/60 Hz control circuit)
- - Poles: 4P
- - Auxiliary contacts: 4 NO
- - Power circuit rated making capacity: 110 A -> Rated for use within the specified current ratings under normal operating conditions: 110 A
- - Rated operational current (power circuit): 20 A at ≤690 V AC, AC-1 -> Rated for operation within the specified voltage and current ranges according to applicable standards
- - Rated insulation voltage: Power circuit 600/690 V
- - IP rating: IP2X
- - Mounting: Rail
- Plate
- - Dimensions: Depth 57 mm
- Width 45 mm
- Height 58 mm
- - Net weight: 0.18 kg
- - Series: LC1K
- - Mechanical durability: 10 Mcycles
- - Maximum operating rate: 3600 cyc/h
- - Impulse withstand voltage: 8 kV -> Testd to withstand impulse voltages up to this level when used within designated parameters
- - Inrush VA: 30 VA
- - Hold-in power: 4.5 VA
- - Ambient storage temperature: -50°C to 80°C
- - Certifications: CB Scheme
- CCC
- UL
- CSA
- EAC
- CE
- UKCA
Additional Information
- Country of Origin: ID
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 7 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 1.00
- Package Width: 1.00
- Package Height: 1.00
- Package Weight: 0.40
