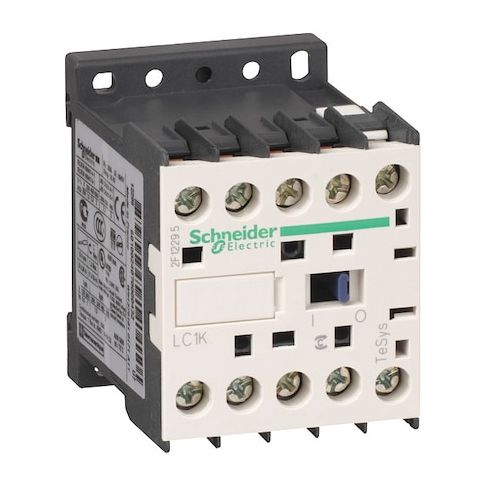

IEC Magnetic Contactor, 1NO, 480V AC, 3 P, Screw Clamp MPN:LC1K0610T7
Free Shipping
In Stock
The Schneider IEC Magnetic Contactor is a reliable and versatile solution for motor control circuit applications. Rated for 480V AC and compatible with 690V AC, it features a 3-pole design with one normally open auxiliary contact. With a robust IP2X rating and 3mΩ impedance, it ensures efficient and safe operation. Suitable for use in various applications, including electrical supplies, it offers a high rated making capacity of 110A and short-time withstand current ratings for 1s, 5s, and 10s. Its compact dimensions and screw clamp terminals make it easy to integrate into existing systems, providing a reliable and efficient solution for motor control needs.
Top product features:
- Actuates main contacts with a 480V AC coil
- Contains one normally open auxiliary contact for additional circuit functionality
- Rated for operation at voltages up to 690V AC for reliable performance in a variety of applications
Top product applications:
- Motor Control
- Power Circuit
- Electrical Supplies
This is an IEC Magnetic Contactor (3-pole) rated for use in motor control circuit applications within specified parameters. It is designed for operation with a 480 V AC coil within specified voltage ranges to actuate the main contacts and contains one normally open auxiliary contact as specified. The unit is rated for operation at voltages up to 690 V AC within the product's specifications, uses screw clamp terminals, and is compatible with mounting on plates or rails according to installation guidelines. It belongs to the LC1K series and has a net weight of 0.18 kg with approximate dimensions of 58 mm (height) by 45 mm (width) by 57 mm (depth).
- Application: Motor Control
- - Poles: 3
- - Coil voltage: 480 V AC
- - Auxiliary contact form: 1 NO
- - Auxiliary contacts: 1
- - Series: LC1K
- - Rated voltage: 690 V AC
- - Mounting: Plate, Rail
- - Electrical connection: Screw Clamp Terminals
- - Dimensions: 58 mm height, 45 mm width, 57 mm depth
- - Net weight: 0.18 kg
- - Fuse ratings are provided
- proper fuse selection should follow applicable standards and guidelines
- - Maximum current ratings are provided
- actual performance may vary based on application conditions
- - Mechanical endurance is specified under test conditions
- real-world lifespan may vary
- - Electrical endurance is specified under test conditions
- actual longevity depends on usage environment
- - IP rating: IP2X
- - Impedance: 3 mΩ
- - Impulse withstand voltage: 8 kV
- - Signalling circuit frequency: Less Than 400 Hz
- - Switching current (Signalling): 5 mA
- - Switching voltage (Signalling): 17 V
- - Rated insulation voltage: 600/690 V
- - Rated making capacity: 110 A
- - Rated short-time withstand current: multiple ratings (e.g., 90 A @ 50°C for 1 s Power Circuit
- 85 A @ 50°C for 5 s Power Circuit
- 80 A @ 50°C for 10 s Power Circuit
- 60 A @ 50°C for 30 s Power Circuit
- 45 A @ 50°C for 1 min Power Circuit
- 40 A @ 50°C for 3 min Power Circuit
- 20 A @ 50°C for 15 min Power Circuit
- 80 A @ 1 s Signalling Circuit
- 90 A @ 500 ms Signalling Circuit
- 110 A @ 100 ms Signalling Circuit)
Additional Information
- Country of Origin: FR
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 10 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 1.00
- Package Width: 1.00
- Package Height: 1.00
- Package Weight: 0.40
