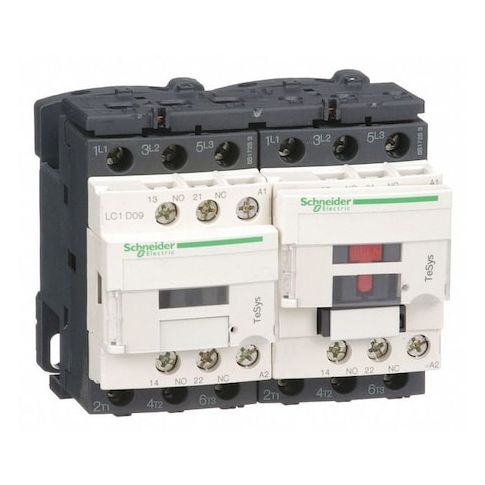

IEC Magnetic Contactor, 1NC/1NO, 120V AC, 3 P, Reversing, Screw Clamp MPN:LC2D09G7
Free Shipping
In Stock
Upgrade your motor control and resistive-load applications with the Schneider IEC Magnetic Contactor. This 3-pole reversing device features a 120V AC coil and 1 normally open and 1 normally closed auxiliary contact, making it ideal for use in a variety of settings, including industrial and commercial environments. With its high electrical durability and mechanical reliability, this contactor ensures long-lasting performance and minimal downtime. Its compact design and screw clamp terminals make it easy to install and integrate with existing systems, making it a reliable choice for applications where power control and switching are critical.
Top product features:
- Reversing action
- 1 normally open and 1 normally closed auxiliary contact
- Screw clamp terminals
Top product applications:
- Motor control
- Resistive-load applications
- Industrial power circuits
An IEC Magnetic Contactor (Schneider Electric, TeSys Deca) is an electrically operated switching device used to control power circuits in IEC-standard installations. It uses an electromagnetic coil to open and close its main contacts and includes 1 normally open and 1 normally closed auxiliary contact. The 3-pole unit features reversing action and a 120 V AC coil, rated for use in motor control and resistive-load applications within specified parameters. It utilizes screw clamp terminals, supports DIN rail or plate mounting, and is provided without an enclosure (IP20) with a protective cover included.
- Action: Reversing
- - Poles: 3
- - Auxiliary Contacts: 1NO/1NC (2 total)
- - Coil Voltage: 120 V AC
- - Series/Family: TeSys Deca
- - Contactor Style: IEC
- - Frequency: 50/60 Hz
- - Max Voltage Rating: 690 V AC
- - Rated Making Capacity: 250 A @ 440 V (Power Circuit)
- 140 A (AC Signalling)
- 250 A (DC Signalling)
- - Electrical Durability: 2,000,000 cycles
- - Mechanical Durability: 15 Mcycles
- - Wiring: Screw Clamp Terminals
- - Enclosure: No Enclosure
- IP20
- - Mounting: DIN Rail, Plate
- - Protective Cover: Yes
- - Features: Without Built-In Suppressor Module
- Preassembled with Reversing Power Busbar
- - Weight: 0.687 kg
- - Dimensions: Width 3.54 in
- Height 3.03 in
- Depth 3.39 in
- - Standards: EN 60947-4-1, EN 60947-5-1, UL 508, UL Listed
- - Fire Rating: UL 94 V1
- - Shock Resistance: 15 G (Closed)
- 10 G (Open)
Additional Information
- Country of Origin: ID
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 4.50
- Package Width: 3.70
- Package Height: 5.50
- Package Weight: 1.79
