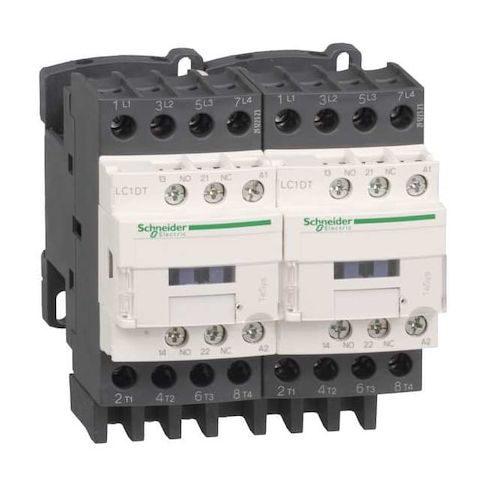

IEC Magnetic Contactor, 1NC/1NO, 120V AC, 4 P, Reversing, Screw Clamp MPN:LC2DT25G7
Free Shipping
In Stock
The Schneider Electric TeSys D IEC Magnetic Contactor is a reliable and efficient switching solution for a variety of applications. Suitable for use in industrial control panels and motor control circuits, this four-pole reversing contactor provides 1NC/1NO auxiliary contacts and a 120V AC coil. Its compact design and screw clamp terminals make it easy to install and integrate into existing systems. The TeSys D contactor is ideal for use in applications such as conveyor systems, pumps, and fans, where reliable and efficient switching is critical. Its robust design and high-quality construction ensure long-lasting performance and minimal downtime.
Top product features:
- The Schneider Electric TeSys D IEC Magnetic Contactor has a 120 V AC coil.
- It is a four-pole reversing contactor with 1NC/1NO auxiliary contacts.
- It has screw clamp terminals for connections.
Top product applications:
- Control Panel
- Industrial Automation
- Power Distribution Systems
The Schneider Electric TeSys D IEC Magnetic Contactor is a four-pole reversing contactor (1NC/1NO auxiliary contacts) with a 120 V AC coil. It is an IEC magnetic switching device rated for operation within specified electrical parameters, and it is supplied with standard connection options as specified in the product specifications.
Key features
- - Coil: 120 V AC
- does not include integrated suppression features
- - Terminals and layout: equipped with screw clamp terminals as per product specifications
- - Mounting: compatible with DIN Rail and plate mounting methods listed in the specifications
- - Enclosure and protection: conforms to IP20 front face rating
- no enclosure included. Does not contain embedded surge suppression features.
- - Electrical ratings: rated for operation up to the maximum values listed in its electrical ratings list
- actual performance depends on proper installation and usage conditions.
- - Durability and timing: durability figures are based on testing standards and do not constitute guarantees of lifespan under all conditions. Operating times are typical values under specified test conditions.
- - Physical size and weight: dimensions provided are nominal measurements based on design specifications, actual sizes may vary slightly due to manufacturing tolerances.
- - Environmental and standards: Ambient operation -40 to 60°C (60–70°C derating)
- Ambient storage -60 to 80°C
- IP20 front face
- Pollution Degree 3
- Standards and certifications: UL
- CSA
- CCC
- EAC
- UKCA
- CB
- EU-RO-MR by DNV-GL
- - Series and product name: TeSys D
- TeSys Deca (Series: TeSys)
- Product name: TeSys D / TeSys Deca
- - Additional ratings: Inrush VA 70
- Hold-in VA 7.5 (60 Hz) / 7 (50 Hz) at 20°C
- Insulation and impedance: 2.5 mΩ
- Rated impulse withstand voltage: 6 kV
Additional Information
- Country of Origin: FR
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 10 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 5.40
- Package Width: 4.50
- Package Height: 4.50
- Package Weight: 1.89
