IEC Magnetic Contactor, 1NC/1NO, 120V AC, 3 P, Reversing, Screw Clamp MPN:LC2D80G7

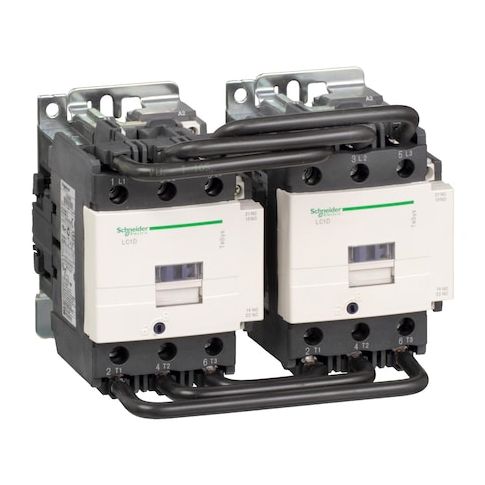

• The TeSys Deca LC2D IEC Magnetic Contactor is a 3-pole, reversing contactor with a 120 V AC coil. It uses a 1NC/1NO auxiliary contact configuration and screw clamp terminals for control and power connections. Preassembled with a reversing power busbar, it is rated for operation with motor control and resistive loads and can be mounted on plate or rail. The unit weighs 3.2 kg and has front-face IP20 protection.

  Key features:

  • - Poles: 3P
  • Action: Reversing
  • Auxiliary Contacts: 1NC/1NO
  • - Coil Voltage: 120 V AC
  • Terminals: Screw Clamp
  • - Mounting: Plate, Rail
  • Protective cover included
  • - Series/Product: LC2D / TeSys Deca
  • Weight: 3.2 kg
  • Dimensions: 127 mm H × 182 mm W × 158 mm D
  • - Inrush/Hold VA: 245 VA / 26 VA
  • - Rated Making Capacity: 140 A (AC Signalling)
  • 250 A (DC Signalling)
  • 1100 A (Power Circuit)
  • - Rated Operational Current: 125 A (AC-1)
  • 80 A (AC-3 / AC-3e)
  • 55 A (AC-4)
  • - Rated Insulation Voltage: Power circuit up to 600 V (CSA/UL)
  • Signalling circuit up to 690 V (IEC 60947-1)
  • - Impedance: 0.8 mΩ
  • Impulse Withstand: 8 kV
  • - Includes protective cover
  • Preassembled with reversing power busbar
