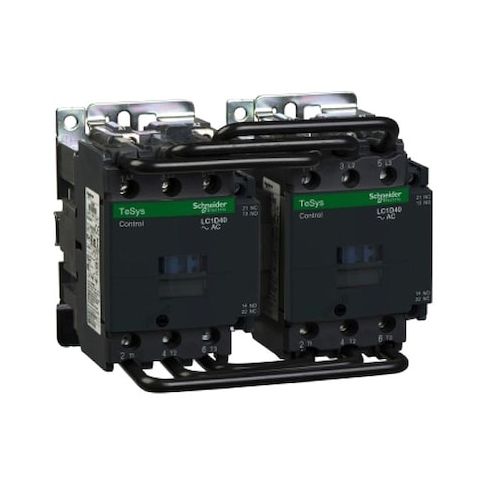

IEC Magnetic Contactor, 1NC/1NO, 120V AC, 3 P, Reversing, Screw Clamp MPN:LC2D50G7
Free Shipping
In Stock
The Schneider Electric IEC Magnetic Contactor is a reliable and efficient solution for motor-control applications, offering a reversing, 3-pole switching device for power circuit control. With a 120V AC coil and 3 normally open main contacts, it provides a secure and stable connection. Suitable for plate or rail mounting, this contactor is ideal for use in industrial settings, such as manufacturing plants, power generation facilities, and HVAC systems, providing a safe and reliable way to control power circuits and protect against electrical surges. Its compact design and easy assembly make it a convenient choice for various applications.
Top product features:
- Reversing action allows for bidirectional control of power circuits
- Three-pole switching device for controlling power circuits in motor-control applications
- Includes 3 normally open main contacts and an auxiliary contact arrangement of 1 NO/1 NC for flexible circuit control
Top product applications:
- Motor-control applications
- Power circuits in industrial equipment
- Control circuits in HVAC systems
Schneider Electric’s IEC Magnetic Contactor is a reversing, 3-pole switching device used to control power circuits in motor-control applications. Rated for operation with a 120 V AC coil
- includes 3 normally open main contacts and an auxiliary contact arrangement of 1 NO/1 NC. Comes pre-assembled with screw-clamp terminals
- compatible with plate or rail mounting options
- includes a protective cover. It does not include an embedded surge suppressor and is rated IP20 for ingress protection.
Key features
- - Action: Reversing
- - Poles: 3
- - Main Contacts: 3 NO
- - Auxiliary Contacts: 1 NO / 1 NC
- - Coil Voltage: 120 V AC
- - Coil Type: Standard
- Without built-in bidirectional peak limiting diode suppressor
- - Embedded Surge Suppressor: Not included
- - Terminals: Screw Clamp
- - Assembly: Ready assembled
- - Mounting: Plate
- Rail
- - Protective Cover: With
- - IP Rating: IP20
- - Ambient Operating Temperature Range: -5°C to +60°C (23°F to 140°F)
- - Ambient Storage Temperature Range: -60°C to +80°C (-76°F to +176°F)
- - Inrush Current Rating: Within specified parameters (see product specifications)
- - Holding VA (Power Consumption): Within the specified range (see product specifications)
- - Impulse Withstand Voltage: As per standards (see product specifications)
- - Rated Insulation Voltage: According to applicable standards (see product specifications)
- - Rated Making Capacity: 140 A (AC Control Circuit)
- 900 A at 440 V (Power Circuit)
- - Rated Operational Current: Power circuit 50 A AC-3 at 60°C
- - Maximum Operating Temperature: 140°F
- - Maximum Voltage Rating: 120 V AC
- - Width x Height x Depth: 165 mm x 132 mm x 142 mm
- - Net Weight: 2.4 kg
- - Standards/Certifications: CSA C22.2 No 14
- EN 60947-4-1
- EN 60947-5-1
- IEC 60947-4-1
- IEC 60947-5-1
- UL 508
- GL
- UL
- RINA
- GOST
- LROS
- CCC
- DNV
- BV
- UKCA
- - Reversing Capability: Reversing
- - Utilisation Category: AC-2
- AC-3
- AC-4
- - Width: 165 mm
- - Depth: 142 mm
Additional Information
- Country of Origin: CZ
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 10.20
- Package Width: 7.50
- Package Height: 7.30
- Package Weight: 7.10
