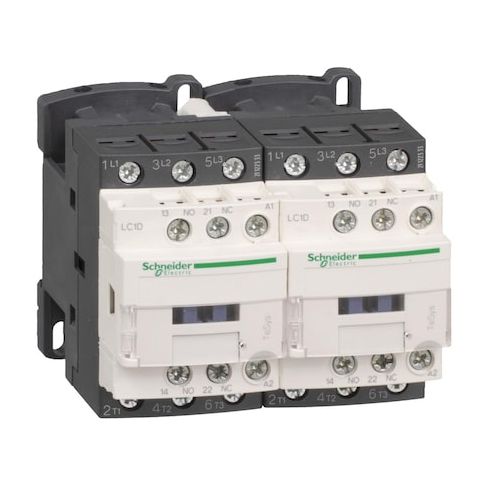

IEC Magnetic Contactor, 1NC/1NO, 110V AC, 3 P, Reversing, Screw Clamp MPN:LC2D18F7
Free Shipping
In Stock
Control power circuits with ease using Schneider Electric's IEC Magnetic Contactor, a reliable and efficient electromechanical switch designed for motor control and resistive-load applications. With a 110V AC coil and 1NC/1NO auxiliary contacts, this 3-pole reversing contactor offers flexible control options. Its screw clamp terminals ensure secure connections, while the IP20 enclosure rating provides protection against environmental factors. Suitable for use in a variety of applications, including motor control and resistive-load circuits, this contactor is an ideal choice for industries requiring reliable and efficient control solutions. Its compact design and durable construction make it a valuable addition to any electrical system.
Top product features:
- IEC Magnetic Contactor has a 3-pole design with reversing action for controlling power circuits in motor control and resistive-load applications.
- It features screw clamp terminals for electrical connection.
- The unit has IP20 enclosure standards for protection against solid objects and accidental touch.
Top product applications:
- Motor Control
- Resistive Load
- Power Circuit
Schneider Electric’s IEC Magnetic Contactor, 3-pole with reversing action, is an electromechanically operated switch designed to control power circuits in motor control and resistive-load applications. It features a 110 V AC coil, 1NC/1NO auxiliary contacts, and screw clamp terminals. The unit is rated for installation on plates or rails
- complies with IP20 enclosure standards
- rated for operation within specified voltage ranges.
- Action: Reversing
- - Poles: 3
- - Auxiliary Contact Form: 1NC/1NO
- - Coil Voltage: 110 V AC
- - Electrical Connection: Screw Clamp Terminals
- - Mounting: Plate, Rail
- - Includes Protective Cover: Yes
- - IP Rating: IP20
- - Series: LC2D
- - Dimensions: Depth 86 mm
- Width 90 mm
- Height 77 mm
- - Net Weight: 0.707 kg
- - Application: Motor Control, Resistive Load
- - Full Load Current - Inductive: 18 A
- - Full Load Current - Resistive: 32 A
- - Rated Voltage: 690 V AC, 300 V DC
- - Rated Making Capacity: 140 A (AC Signalling Circuit), 250 A (DC Signalling Circuit), 300 A @ 440 V (Power Circuit)
