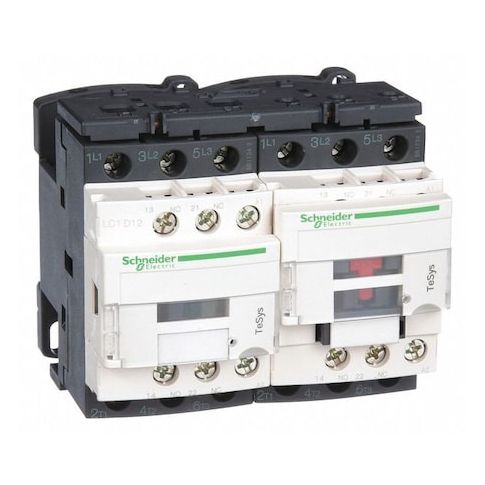

IEC Magnetic Contactor, 1NC/1NO, 120V AC, 3 P, Reversing, Screw Clamp MPN:LC2D12G7

• The SCHNEIDER ELECTRIC - IEC Magnetic Contactor is a reversing contactor intended for use in motor control and resistive load applications. It operates within an ambient air temperature range of -40 to 140°F (-40 to 60°C) and can be stored at temperatures ranging from -76 to 176°F (-60 to 80°C). The contactor features a coil voltage of 120V AC, making it suitable for use in various industrial settings. Its auxiliary contacts are mechanically linked, meant to operate under various conditions.

  Key Features:

• - Reversing action intended for varied uses
• - Operates within a wide range of ambient air temperatures
• - Coil voltage rated at 120V AC
• - Auxiliary contact type: Mechanically linked (performance may vary based on conditions)
• - Average impedance: 2.5 mOhm
• - Associated fuse rating:10 A gG for signalling circuit
• up to 40 A gG for power circuit
• - Electrical endurance rated up to 2 Mcycles (12 A, AC-3, Less than or Equal to440 V) - actual performance may vary
• - Mechanical endurance rated up to15 Mcycles - actual performance may vary
• - Rated insulation volts:600/690V
• -Mounting style:DIN Rail, Plate. Please note that the product does not include an enclosure and has no built-in suppressor module.
