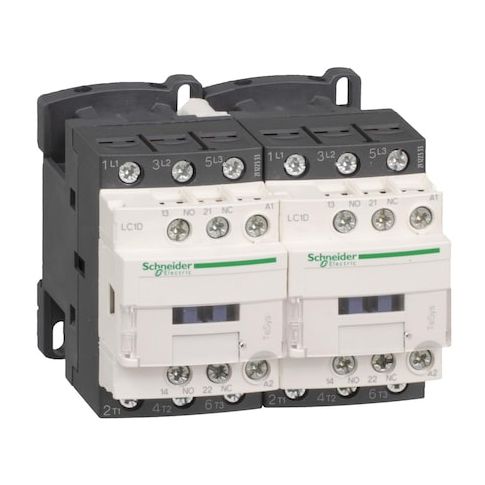

IEC Magnetic Contactor, 1NC/1NO, 24V DC, 3 P, Reversing, Screw Clamp MPN:LC2D12BL
Free Shipping
In Stock
The Schneider Electric IEC Magnetic Contactor is a reliable and efficient solution for switching power circuits in various applications. Suitable for use in industrial, commercial, and residential settings, this 3-pole, reversing-contactor is rated for operation within specified voltage ranges. Its 24V DC coil and 1NC/1NO auxiliary contact ensure seamless control and monitoring. The unit's screw clamp terminals and IP20 enclosure provide secure connections and protection. With a rated making capacity of 250A @ 440V, it's ideal for power circuits, signaling, and control systems in a range of industries, including manufacturing, HVAC, and renewable energy.
Top product features:
- Reversing action allows for switching of power circuits in both directions
- Screw clamp terminals provide secure and easy electrical connections
- IP20 enclosure provides protection against solid objects and accidental touch
Top product applications:
- Motor Control Circuits
- Industrial Automation Systems
- Power Distribution Systems
The Schneider Electric IEC Magnetic Contactor is a 3-pole, reversing-contactor rated for switching power circuits within specified parameters. It uses a 24 V DC coil and includes an auxiliary contact of the 1NC/1NO configuration. The unit uses screw clamp terminals and is compatible with mounting on plate or rail as per installation guidelines. It belongs to the LC2D series and has an IP20 enclosure
- protective cover included for additional protection if used appropriately.
Key features
- - Series: LC2D
- - Poles: 3
- - Action: Reversing
- - Coil voltage: 24 V DC
- - Auxiliary contact form: 1NC/1NO
- - Electrical connection: Screw Clamp Terminals
- - Mounting: Plate, Rail
- - Rated voltage: rated for operation within the specified voltage ranges under normal conditions
- - IP rating: conforms to the IP20 standard when installed and used according to manufacturer instructions
- - Includes protective cover: includes a protective cover
- proper use recommended as per product documentation
- - Dimensions (W x H x D): dimensions are provided for reference only
- actual installation should follow applicable standards and guidelines
- - Net weight: net weight is provided for informational purposes only
- does not imply performance characteristics
- - Non-Overlap Time: 1.5 ms
- - Mechanical durability: 30 Mcycles
- - Shock resistance: 15 G (Closed), 10 G (Open)
- - Signalling circuit: Switching current 5 mA
- Switching voltage 17 V
- - Standards: EN 60947-4-1, EN 60947-5-1, UL 508, CSA C22.2 No 14, IEC 60947-4-1, IEC 60947-5-1
- - Rated making capacity: 250 A @ 440 V (Power Circuit), 140 A (AC Signalling), 250 A (DC Signalling)
- - Fuse ratings (as applicable): 10 A (Signalling), 40 A (Type 1 Power Circuit), 25 A (Type 2 Power Circuit)
Additional Information
- Country of Origin: FR
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 19 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 1.00
- Package Width: 1.00
- Package Height: 1.00
- Package Weight: 2.54
