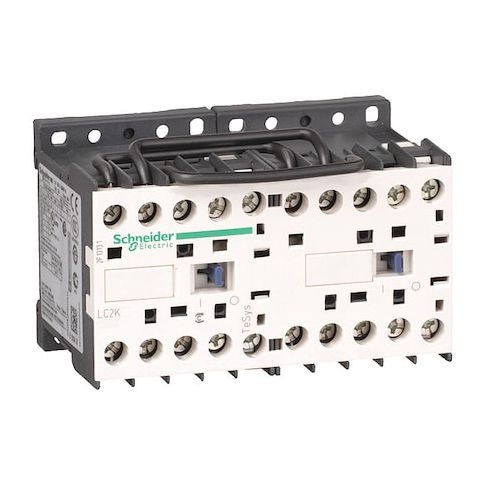

IEC Magnetic Contactor, No Auxiliary Contacts, 24V AC, 3 P, Reversing, Screw Clamp MPN:LC2K0910B7
Free Shipping
In Stock
The Schneider Electric IEC Magnetic Contactor is a reliable and efficient switching device designed for motor control and resistive load applications. Its reversing functionality allows for flexible control of 3-pole loads, while its 24V AC coil and screw clamp terminals provide easy installation and operation. With a maximum voltage rating of 690V AC, this contactor is suitable for a wide range of applications, including industrial automation, HVAC systems, and power distribution. Its compact design and high-quality construction ensure reliable performance and long-lasting durability, making it an ideal choice for demanding industrial environments.
Top product features:
- The Schneider Electric IEC Magnetic Contactor is a reversing, 3-pole switching device rated for operation within the specified IEC standards.
- It features a 24 V AC coil.
- It has screw clamp terminals for electrical connections.
Top product applications:
- Motor control
- Resistive load switching
- General purpose switching
The Schneider Electric IEC Magnetic Contactor is a reversing, 3-pole switching device rated for operation within the specified IEC standards. It features a 24 V AC coil, screw clamp terminals, and no auxiliary contacts, and is part of the TeSys K family. Its applications include motor control and resistive load switching, and it is rated for use at voltages up to 690 V AC.
Key features
- - Action: Reversing
- - Coil voltage: 24 V AC
- - Poles: 3P
- Main contacts: 3 NO
- - Auxiliary contacts: No
- - Electrical connections: Screw clamp terminals
- - Series: TeSys K
- - Maximum voltage rating: Rated for use at voltages up to 690 V AC
- - Frequency: 50/60 Hz
- - Full load amps: 9 A (inductive), 20 A (resistive)
- - IP rating: IP20
- Enclosure: No enclosure
- - Ambient operating/storage temps: -25°C to 50°C / -50°C to 80°C
- - Mounting: DIN Rail, Plate
- - Net weight: 0.39 kg
- - Impedance: 3 mΩ
- - Inrush VA / Hold-in VA: 30 VA / 4.5 VA
- - Impulse withstand: 8 kV
- - Rated insulation voltage: 600/690 V
- - Certifications: CB Scheme
- CCC
- UL
- CSA
- EAC
- CE
- UKCA
Additional Information
- Country of Origin: FR
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 3.70
- Package Width: 2.40
- Package Height: 2.50
- Package Weight: 0.80
