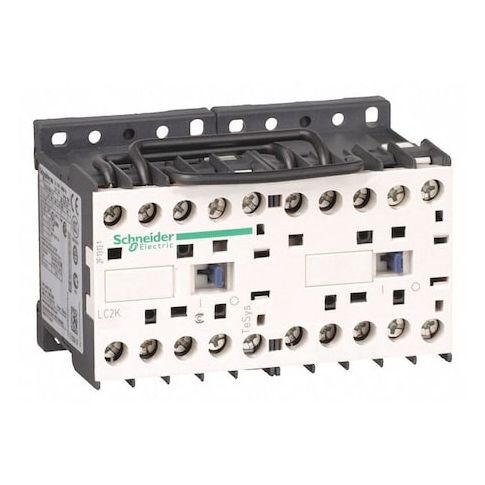

IEC Magnetic Contactor, No Auxiliary Contacts, 24V AC, 3 P, Reversing, Screw Clamp MPN:LC2K1210B7
Free Shipping
In Stock
The Schneider Electric IEC Magnetic Contactor is a reliable and efficient switching device for a wide range of applications. Suitable for use in panel assemblies, it provides a reversing, 3-pole switching action with a 24V AC coil. Its compact design and compatibility with DIN rail or plate mounting methods make it an ideal choice for various industries, including manufacturing, HVAC, and automation. The contactor's high insulation resistance and low power consumption also ensure safe and energy-efficient operation, making it an excellent choice for applications requiring high reliability and minimal downtime.
Top product features:
- Reversing action allows the device to switch direction of current flow
- Three-pole switching provides multiple points of control and isolation
- Impulse withstand voltage of up to 8 kV protects against electrical surges
Top product applications:
- Industrial Automation Systems
- Power Distribution Panels
- Motor Control Centers
The SCHNEIDER ELECTRIC IEC Magnetic Contactor is a reversing, 3-pole switching device with a 24 V AC coil. Rated for operation within the specified voltage and current ranges. It is part of the TeSys K family and complies with IEC standards for styling and mounting (if applicable) for panel assemblies.
- Action: Reversing
- - Poles: 3P
- - Coil Voltage: 24 V AC
- - Main Contacts: 3 NO
- - Auxiliary Contacts: No Auxiliary Contacts
- - Frame/Series: TeSys K
- - Contactor Style: IEC
- - Maximum Voltage (Power circuit): Rated for operation up to specified maximum voltage and frequency limits
- - Rated Currents: Rated for specified current ranges under typical conditions
- - Ambient Operation/Storage: Suitable for ambient temperature ranges specified
- actual performance may vary outside these conditions
- - IP/Enclosure: Meets IP20 rating
- does not include a protective enclosure
- - Mounting: Compatible with DIN rail or plate mounting methods as per manufacturer specifications
- - Dimensions (W x H x D): 3.54 in × 2.28 in × 2.24 in (physical dimensions of the product only)
- - Net Weight: 0.39 kg
- - Protection/Durability:
- - Impulse withstand voltage of up to 8 kV according to testing standards - Hold-in power consumption approximately 4.5 VA - Inrush power consumption approximately up to 30 VA
- - Insulation/Impedance:
- - Insulation resistance typically exceeds standard values at rated voltages
- - Certifications:
- CB Scheme
- CCC
- UL
- CSA
- EAC
- CE
- UKCA
Additional Information
- Country of Origin: FR
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 3.70
- Package Width: 2.40
- Package Height: 2.50
- Package Weight: 0.80
