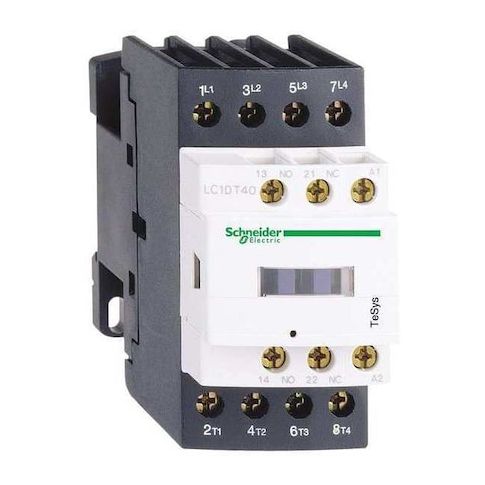

IEC Magnetic Contactor, 1NC/1NO, 120V AC, 4 P, Non-Reversing, Screw Clamp MPN:LC1DT40G7
Free Shipping
In Stock
The Schneider Electric IEC Magnetic Contactor is a reliable and efficient electromechanical switch designed for use in various resistive-load applications. This 4-pole, non-reversing device features a 120V AC control coil and screw clamp terminals for easy wiring. With a protective cover and IP20 front protection, it provides a secure connection. Suitable for DIN rail or plate mounting, this contactor is ideal for use in industrial settings, such as manufacturing facilities, power plants, and data centers. Its high making capacity and certifications make it a trustworthy choice for applications requiring high reliability and safety.
Top product features:
- The product has a 4-pole, non-reversing electromechanical switch rated for use within specified resistive-load applications.
- The device includes a protective cover with IP20 front protection.
- The product uses screw clamp terminals for wiring and is compatible with DIN rail or plate mounting.
Top product applications:
- Resistive-load applications
- Electromechanical switch control in industrial settings
- Industrial control systems
The Schneider Electric IEC Magnetic Contactor is a 4-pole, non-reversing electromechanical switch (IEC magnetic contactor) rated for use within specified resistive-load applications. The control coil is rated for 120 V AC within specified parameters. The device uses screw clamp terminals for wiring and is compatible with DIN rail or plate mounting
- it includes a protective cover with IP20 front protection.
Key features
- - Coil voltage: 120 V AC
- - Poles/Main contacts: 4P, 4 NO
- - Auxiliary contacts: 1 NC / 1 NO
- - Reversing: Non-Reversing
- - Mounting/Connections: DIN Rail or Plate mounting
- Screw Clamp terminals
- - Protection and enclosure: IP20
- No Enclosure
- Protective cover included
- - Series/Frame: TeSys Deca / TeSys
- - Maximum insulation voltage: 600/690 V
- Suitable for voltages up to 690 V AC
- - Utilisation category: AC-1
- AC-3
- AC-3e
- AC-4
- - Has a rated making capacity of up to 450 A at 440 V under standard test conditions
- - Certifications: UL
- CSA
- CCC
- DNV
- GOST
- BV
- GL
- RINA
- LROS
- - Weight: 0.425 kg
- - Dimensions: Height 3.58 in
- Width 1.77 in
- Depth 3.9 in
Additional Information
- Country of Origin: ID
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 4.60
- Package Width: 3.80
- Package Height: 2.20
- Package Weight: 1.05
