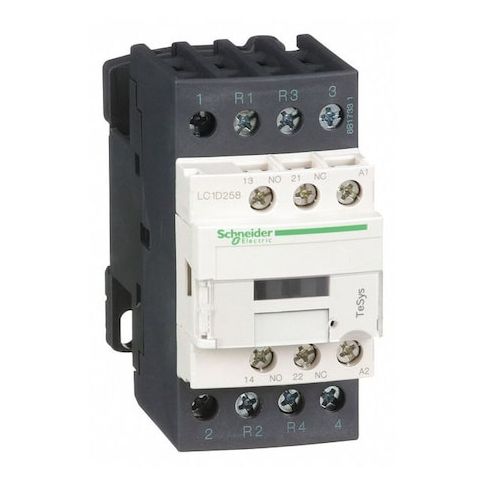

IEC Magnetic Contactor, 1NC/1NO, 120V AC, 4 P, Non-Reversing, Screw Clamp MPN:LC1D258G7
Free Shipping
In Stock
The Schneider Electric IEC Magnetic Contactor is a reliable and efficient electrical switching device designed for resistive-load control in control circuits. With a 4-pole, non-reversing configuration and 120V AC coil, it provides precise control and flexibility in various applications. Its compact design and screw clamp terminals make it easy to install and integrate into existing systems. Suitable for use in industrial, commercial, and residential settings, the TeSys Deca magnetic contactor offers high durability, low impedance, and excellent IP20 front face protection, making it an ideal choice for applications where reliability and efficiency are paramount.
Top product features:
- 4-pole, non-reversing electrical switching device
- Provides IP20 front face protection when installed as specified
- Mechanically linked auxiliary contacts with 1 NC and 1 NO
Top product applications:
- Resistive-load control in electrical control circuits
- Automated machinery and equipment control
- Power distribution systems and panelboards
The SCHNEIDER ELECTRIC IEC Magnetic Contactor is a 4-pole, non-reversing electrical switching device with a 120 V AC coil. It uses screw clamp terminals and includes a protective cover
- the enclosure is not provided. Designed for resistive-load control in electrical control circuits, it is part of the TeSys Deca family and is rated for operation within the specified voltage and frequency ranges. It features 2 main contacts (2 NO + 2 NC) and 2 auxiliary contacts (1 NC + 1 NO), and is designed to provide IP20 front face protection when installed as specified.
Key features
- - Coil voltage: 120 V AC
- - Poles/Main contacts: 4P
- 2 NO + 2 NC
- - Auxiliary contacts: 2 total (1 NC + 1 NO), mechanically linked
- - Reversing: Non-Reversing
- - Terminals: Screw Clamp
- - Mounting: DIN Rail and Plate
- - Enclosure/Protection: No Enclosure
- Protective Cover: With
- IP rating: IP20 front face protection
- - Series: TeSys Deca
- - Maximum voltage: 690 V AC
- - Frequency: 50/60 Hz
- - Rated making capacity: 140 A AC signalling
- 250 A DC signalling
- 450 A @ 440 V (Power Circuit)
- - Inrush/ Hold VA: Inrush 70 VA
- Hold 7.5 VA (60 Hz) / 7 VA (50 Hz)
- - Durability: Electrical 1.4 Mcycles
- Mechanical 15 Mcycles
- - Weight: 0.425 kg
- - Dimensions: Height 4.13 in
- Width 1.77 in
- Depth 3.9 in
- - Impedance: 2 mΩ
- - Impulse withstand: 6 kV
Additional Information
- Country of Origin: ID
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 4.70
- Package Width: 3.80
- Package Height: 2.20
- Package Weight: 1.05
