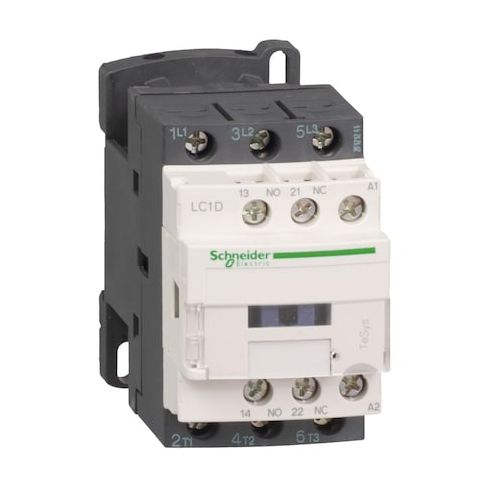

IEC Magnetic Contactor, 1NC/1NO, 48V AC, 3 P, Non-Reversing, Screw Clamp MPN:LC1D18E7
Free Shipping
In Stock
The Schneider Electric IEC Magnetic Contactor is a reliable and efficient solution for motor control and resistive load applications. Its 3-pole design and non-reversing functionality ensure precise control, while the screw clamp terminals accommodate various cable stiffness types for easy installation. With a coil voltage of 48V AC and compatibility with single-phase and three-phase systems, this contactor is suitable for a wide range of applications, including HVAC, lighting, and industrial automation. Its durable design and high insulation voltage rating make it an ideal choice for demanding environments, providing long-lasting performance and minimizing downtime.
Top product features:
- Mechanically linked auxiliary contacts conforming to IEC standards
- Screw clamp terminals accommodating various cable stiffness types for both control and power circuits
- Average impedance of 2.5 mOhm at Ith32 A50 Hz for the power circuit
Top product applications:
- Motor control
- Resistive load applications
- Power circuit applications
The SCHNEIDER ELECTRIC - IEC Magnetic Contactor is a non-reversing, 3-pole contactor with a coil voltage of 48V AC. It's designed for motor control and resistive load applications. The product features an auxiliary contact form of 1NC/1NO and mechanically linked auxiliary contacts type conforming to IEC standards. This magnetic contactor has screw clamp terminals that accommodate various cable stiffness types for both the control circuit and power circuit.
Key Features:
- - Auxiliary Contacts Type: Mechanically linked 1 NO + 1 NC IEC 60947-5-1
- Mirror contact 1 NC IEC 60947-4-1
- - Average Impedance: Offers an average impedance of 2.5 mOhm at Ith32 A50 Hz for the power circuit.
- - Coil Voltage: Operates on a coil voltage of 48V AC.
- - Connections-Terminals: Comes with multiple screw clamp terminals accommodating different cable stiffness types in both control and power circuits.
- -Electrical Durability: Electrical durability varies based on ampere and voltage conditions.
- -Full Load Currents: Full load current compatibility is up to18A (inductive) and up to32A (resistive).
- -Horsepower Ratings: Horsepower rating compatibility ranges from single phase -240V AC at3hp, three-phase -208V AC at5hp, three-phase -480V AC at10hp among others.
- -Rated Insulation Volts: Rated for insulation volts of600/690 V within specified high voltage ranges.
- -Mounting Support Options include rail or plate mounting support offering flexibility during installation.
Additional Information
- Country of Origin: ID
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 10 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 4.70
- Package Width: 3.70
- Package Height: 2.20
- Package Weight: 0.80
