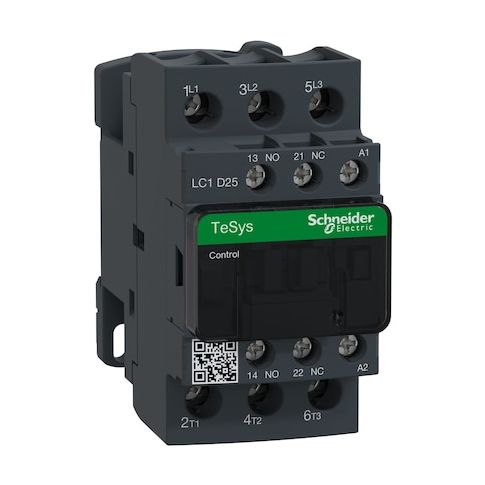

IEC Magnetic Contactor, 1NC/1NO, 120V AC, 3 P, Non-Reversing, Screw Clamp MPN:LC1D25G7
Free Shipping
In Stock
The Schneider Electric IEC Magnetic Contactor is a reliable and efficient solution for control system applications. Rated for use in 120V AC environments, this 3-pole, non-reversing contactor features auxiliary contacts and screw clamp terminals, making it ideal for use in a variety of industrial settings. Its compact design and DIN rail mounting capabilities make it easy to integrate into existing systems. With its robust construction and high switching capacity, this contactor is perfect for use in applications such as motor control, lighting systems, and HVAC systems, providing reliable and efficient control in a range of industrial and commercial settings.
Top product features:
- Operates at 120V AC coil voltage
- Includes auxiliary contacts with 1 normally open (NO) and 1 normally closed (NC) configuration
- Has 3 normally open main contacts for switching applications
Top product applications:
- Industrial Control Systems
- Industrial Automation
- Machine Control Panels
The Schneider Electric IEC Magnetic Contactor is a 3-pole, non-reversing, electrically operated switch rated for use within IEC-standard control system parameters. Energized by a 120V AC coil, it includes auxiliary contacts (1NO/1NC) and is compatible with screw clamp terminals. It is part of the TeSys Deca family and does not include an enclosure.
- Poles: 3
- Reversing: Non-Reversing
- Main Contacts: 3 normally open
- - Auxiliary Contacts: 2 total (1NO/1NC)
- - Coil Voltage: 120V AC
- - Electrical Connection: Screw Clamp Terminals
- - Frame / Series: TeSys Deca
- Contactor Style: IEC
- - Rated Voltage: rated for operation at voltages up to 690V AC and 300V DC within specified conditions
- - IP Rating / Enclosure: IP20
- does not include an enclosure
- suitable for installation according to applicable standards
- - Mounting: DIN Rail, Plate
- - Frequency: 50/60 Hz
- - Full Load Amps: rated for continuous operation at the specified current levels under normal conditions
- - Protective Cover: Yes
- Embedded Surge Suppressor: No
- - Net Weight: 0.37 kg
- - Dimensions: Depth 3.62 in
- Height 3.35 in
- Width 1.77 in
- - Operating Time: typical switching times based on testing, but actual performance may vary depending on application conditions
- - Mechanical Durability: 15 Mcycles
- - Standards: conforms to relevant standards including EN and UL certifications as applicable
- - Environmental: Mercury Free, PVC Free, Toxic Heavy Metal Free, Pollution Degree 3
- - Other electrical specs: Switching Current 5 mA (Signalling Circuit)
- Switching Voltage 17 V (Signalling Circuit)
Additional Information
- Country of Origin: ID
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 3.40
- Package Width: 1.80
- Package Height: 3.70
- Package Weight: 1.00
