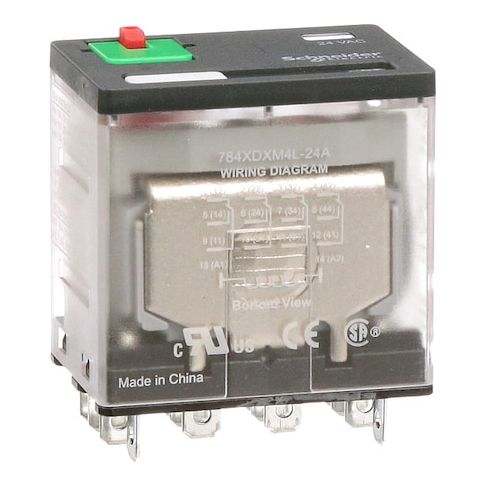

Socket, General Purpose Relay, Square, 15 A, 14 Pins, Faston Connector MPN:784XDXM4L-24A
Socket, General Purpose Relay, Square, 15 A, 14 Pins, Faston Connector
The Schneider General Purpose Relay is a versatile and reliable solution for a wide range of applications. With a 24V AC coil voltage and 15A current rating, it can handle demanding electrical loads, including 1/2 hp at 120V AC and 3/4 hp at 240V AC. The relay features a faston terminal connection and a 4PDT contact form, making it easy to integrate into your circuit. Its compact square design and LED status indicator make it ideal for use in industrial control systems, HVAC, and automation applications, providing efficient and reliable control of electrical devices.
Top product features:
- Faston Terminal for easy electrical connection
- 4PDT Contact Form for multiple switching options
- LED Indicator and Mechanical Flag for visual and tactile status feedback
Top product applications:
- Industrial Automation Control Panels
- Process Control Systems
- Machine Automation and Control Systems
General Purpose Relay, Base Shape Square, Coil Voltage 24V AC, Contact Form 4PDT, Current Rating 15 A, Electrical Connection Faston Terminal, Flat Pin Width 0.187 in, Number of Pins 14, Status Indicator LED Indicator, Mechanical Flag, Contact Rating (AC) 10 A @ 151/277V, 15 A @ 120 to 277/120/150/250V, 7.55 A @ 250V, Contact Rating (DC) 15 A @ 28V (NO), 7.55 A @ 28V (NC), Horsepower @ 120V AC 1/2 hp, Horsepower @ 240V AC 3/4 hp, Mounting Style Socket, Push-To-Test Method Lockable
Additional Information
- Country of Origin: CN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 3.20
- Package Width: 2.80
- Package Height: 2.10
- Package Weight: 0.20
Product info last updated on January 15, 2026 8:06am UTC
Category: Industrial Electrical Controls and Automation
