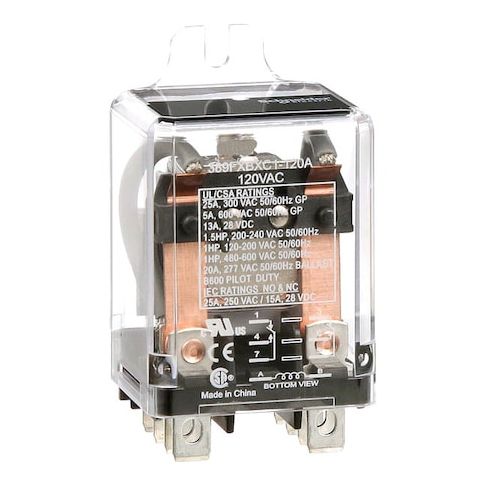

Flange Mount, Enclosed Power Relay, Octal, 25 A, 8 Pins, Quick Connect MPN:389FXBXC1-120A
Flange Mount, Enclosed Power Relay, Octal, 25 A, 8 Pins, Quick Connect
The Schneider Enclosed Power Relay is a reliable and efficient solution for a wide range of applications, including industrial control systems, motor control, and power distribution. Its 25A current rating and 120V AC coil voltage make it suitable for heavy-duty use, while its DPDT contact form provides versatile switching options. The relay's quick-connect electrical connection and mechanical flag status indicator simplify installation and monitoring. Suitable for applications such as HVAC, lighting control, and conveyor systems, this relay offers a high level of reliability and durability, making it an ideal choice for industries that require high-performance switching solutions.
Top product features:
- Enclosed design protects the relay's internal components from environmental factors
- Quick-Connect electrical connection simplifies installation and reduces wiring time
- DPDT contact form allows for complex switching and control scenarios
Top product applications:
- Industrial automation systems
- Motor control circuits
- Control panels for HVAC systems
Enclosed Power Relay, Base Shape Octal, Coil Voltage 120V AC, Contact Form DPDT, Current Rating 25 A, Electrical Connection Quick-Connect, Number of Pins 8, Status Indicator Mechanical Flag, Contact Rating (AC) 20 A @ 277V, 22 A @ 120V, 25 A @ 250/300V, 5 A @ 600V, Contact Rating (DC) 13 A @ 28V, 15 A @ 28V, Horsepower @ 120V AC 1 hp, Horsepower @ 240V AC 1 1/2 hp, Mounting Style Flange, Body Depth 1.4 in, Body Height 2.9 in, Body Width 1.53 in, Coil Resistance 1,700 ohm
Additional Information
- Country of Origin: CN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 3.80
- Package Width: 2.50
- Package Height: 1.70
- Package Weight: 0.42
Product info last updated on February 5, 2026 1:09am UTC
Category: Industrial Electrical Controls and Automation
