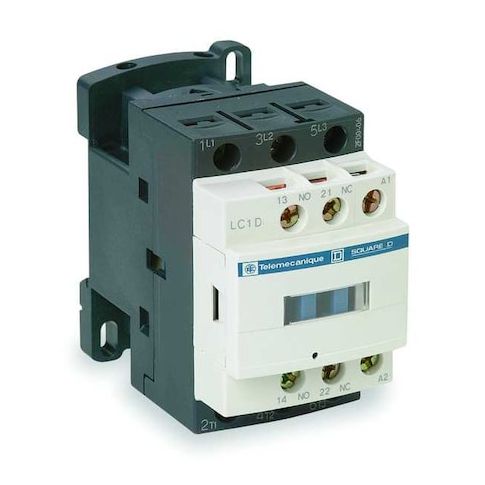

IEC Magnetic Contactor, 1NC/1NO, 208V AC, 3 P, Non-Reversing, Screw Clamp MPN:LC1D12LE7

• - The item is an IEC Magnetic Contactor (3-pole, non-reversing) from the TeSys Deca series.

• - It uses a 208 V AC coil to switch power circuits and includes auxiliary contacts as specified
• actual performance may vary based on application.
• - Rated for operation with motor control and resistive loads within specified parameters
• uses screw clamp terminals
• no built-in surge suppressor or enclosure.
• - It is rated for operation within the specified voltage and frequency ranges and can be mounted on DIN rails or plates.
• - Action: Non-Reversing
• - Phase/Poles: Three-phase, 3 poles
• - Coil Voltage: 208 V AC
• - Auxiliary contacts: includes auxiliary contacts as specified
• actual performance may vary based on application
• - Electrical ratings: Maximum voltage 690 V AC
• Rated making capacity 250 A @ 440 V (Power Circuit)
• 140 A (AC Signalling)
• 250 A (DC Signalling)
• - Full Load Amps: 12 A inductive
• 25 A resistive
• - Durability: durability ratings are based on testing conditions
• actual lifespan may vary depending on usage
• - IP/Enclosure: IP20
• No Enclosure
• - Mounting/Terminals: DIN Rail, Plate mounting
• Screw Clamp terminals
• - Dimensions/Weight: Depth 3.38 in
• Height 3.03 in
• Width 1.77 in
• Net Weight 0.325 kg
• - Series: TeSys Deca
• - Operating times: typical switching times under test conditions
• actual response time may vary
• - Impulse withstand: impulse withstand voltage as tested under specific standards
• does not imply immunity from all transient events
• - Includes: Auxiliary Contacts Yes
• Protective Cover Yes
• - Shock resistance: 15 G (Closed)
• 10 G (Open)
• - Standards: BV, CCC, CSA, CSA C22.2 No 14, DNV, EN 60947-4-1, EN 60947-5-1, GL, GOST, IEC 60335-1, IEC 60947-4-1, IEC 60947-5-1, LROS, RINA, UKCA, UL 508, UL Listed
• - Frequency: 50/60 Hz
• - Maximum Operating Temperature: 140 Degrees F
