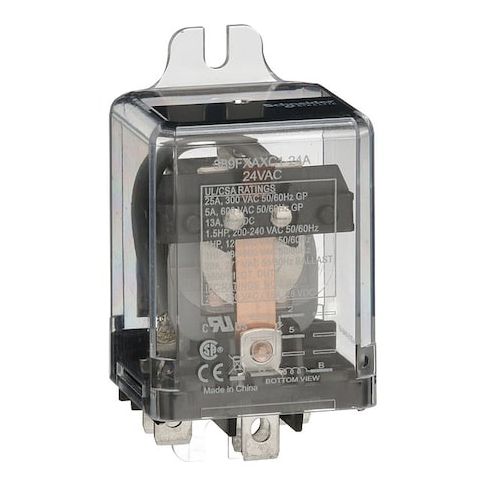

Flange Mount, Enclosed Power Relay, Square, 25 A, 5 Pins, Quick Connect MPN:389FXAXC1-24A
Flange Mount, Enclosed Power Relay, Square, 25 A, 5 Pins, Quick Connect
The Schneider Flange Mount Enclosed Power Relay is a reliable and efficient solution for a variety of applications. With a 25A current rating and SPDT contact form, it can handle high-power electrical loads with ease. The quick-connect feature makes installation a breeze, while the mechanical flag status indicator provides clear visual feedback. Suitable for use in industrial control systems, the relay can switch up to 1.5 horsepower at 240V AC, making it ideal for applications such as motor control, lighting systems, and HVAC equipment. Its compact design and durable construction ensure long-lasting performance in demanding environments.
Top product features:
- Square base shape for easy mounting
- Quick-Connect electrical connection for fast and secure wiring
- SPDT contact form for switching between two circuits
Top product applications:
- Motor Control Circuits
- Industrial Automation Systems
- Power Distribution Panels
Enclosed Power Relay, Base Shape Square, Coil Voltage 24V AC, Contact Form SPDT, Current Rating 25 A, Electrical Connection Quick-Connect, Number of Pins 5, Status Indicator Mechanical Flag, Contact Rating (AC) 20 A @ 277V, 22 A @ 120V, 25 A @ 250/300V, 5 A @ 600V, Contact Rating (DC) 13 A @ 28V, 15 A @ 28V, Horsepower @ 120V AC 1 hp, Horsepower @ 240V AC 1 1/2 hp, Mounting Style Flange, Body Depth 2.18 in, Body Height 2.43 in, Body Width 2.5 in, Coil Resistance 72 ohm
Additional Information
- Country of Origin: CN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 4.00
- Package Width: 2.50
- Package Height: 2.00
- Package Weight: 0.20
Product info last updated on January 15, 2026 1:30am UTC
Category: Industrial Electrical Controls and Automation
