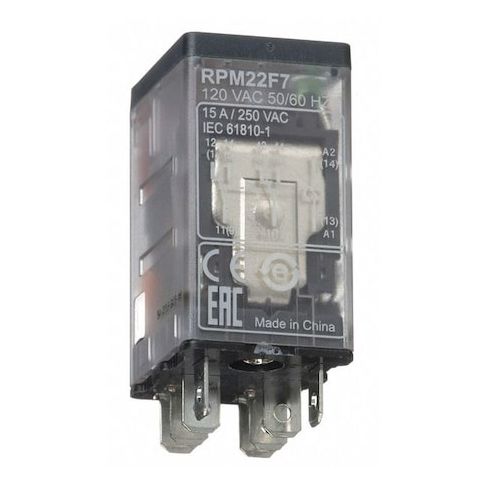

Plug-In, General Purpose Relay, Square, 15 A, 8 Pins, Quick Connect MPN:RPM22F7
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G0311893
Plug-In, General Purpose Relay, Square, 15 A, 8 Pins, Quick Connect
The Schneider Plug-In General Purpose Relay is a versatile and reliable solution for a wide range of applications. This square-shaped relay is designed for plug-in installation and features a DPDT contact form, allowing for efficient control of multiple circuits. With a current rating of 15A and a coil voltage of 120V AC, this relay is suitable for various applications, including industrial automation, lighting control, and HVAC systems. Its quick-connect feature and LED status indicator make it easy to use and monitor. Its compact design and robust construction ensure reliable performance in demanding environments.
Top product features:
- Plug-In design allows for easy installation and removal without requiring additional wiring or tools.
- The relay has a DPDT contact form, enabling it to switch two independent circuits with a single coil activation.
- The relay features an LED indicator and a mechanical flag to provide visual and tactile confirmation of its status.
Top product applications:
- Industrial Control Panels
- Machine Control Systems
- Automotive Electrical Systems
General Purpose Relay, Base Shape Square, Coil Voltage 120V AC, Contact Form DPDT, Current Rating 15 A, Electrical Connection Quick-Connect, Flat Pin Width 0.18 in, Number of Pins 8, Pin Shape Flat, Sealing Enclosed, Status Indicator LED Indicator, Mechanical Flag, Contact Rating (AC) 15 A @ 277V, Contact Rating (DC) 15 A @ 28V, Horsepower @ 120V AC Not Rated, Horsepower @ 240V AC Not Rated, Mounting Style Plug-In, Push-To-Test Method Lockable, Body Depth 1.54 in, Body Height 1.06 in
Additional Information
- Country of Origin: CN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 1.90
- Package Width: 1.10
- Package Height: 0.80
- Package Weight: 0.08
Product info last updated on January 15, 2026 1:25am UTC
Category: Industrial Electrical Controls and Automation
