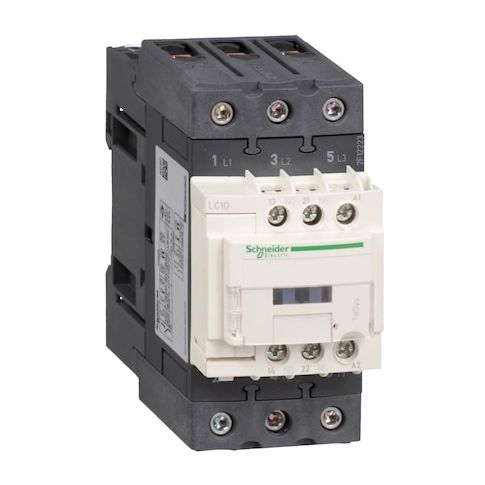

IEC Magnetic Contactor, 1NC/1NO, 600V AC, 3 P, Non-Reversing, Screw Clamp MPN:LC1D50AX7
The Schneider Electric IEC Magnetic Contactor is a robust and versatile tool for motor control and resistive load applications in heavy-duty industrial environments. Its 600V AC coil voltage and three poles make it suitable for demanding conditions. The contactor features auxiliary contacts, screw clamp terminals, and EverLink BTR screw connectors for flexibility in installation. It offers efficient operation, high electrical durability, and a long mechanical lifespan. Suitable for use in industrial settings, this contactor is ideal for applications such as motor control, resistive load control, and heavy-duty industrial automation. Its reliability and durability make it a valuable asset for industrial operations.
Top product features:
- The contactor operates as a non-reversing device, ensuring that the motor or load only turns in one direction.
- The contactor features three poles for connection to a motor or load, allowing for efficient and reliable control.
- The contactor has auxiliary contacts that are mechanically linked, enabling efficient and reliable operation under demanding conditions.
Top product applications:
- Motor control applications in heavy-duty industrial settings
- Resistive load applications in various industrial processes
- General purpose control of electrical circuits in industrial automation systems
The SCHNEIDER ELECTRIC - IEC Magnetic Contactor is a robust and versatile tool intended for use in motor control and resistive load applications. This non-reversing contactor operates with a coil voltage of 600V AC, making it suitable for heavy-duty industrial use. It features three poles and auxiliary contacts that are mechanically linked, designed to function under demanding conditions. The contactor's connections include screw clamp terminals for the control circuit and EverLink BTR screw connectors for the power circuit, offering flexibility in installation.
Key Features:
- - Auxiliary Contact Form: 1NC/1NO designed for efficient operation.
- - Average Impedance: Has a specified impedance of 1.5 mOhm - Ith 80 A 50 Hz for power circuit.
- - Coil Voltage: Operates at a high coil voltage of 600V AC.
- - Electrical Durability: Rated to withstand up to 1.45 Mcycles (50 A, AC-3, Less than 440 V) under regular usage.
- - Full Load Currents: Rated for full load currents of up to Inductive: 50 A
- Resistive: 80 A
- - Mechanical Durability: Has a rated mechanical durability of up to six million cycles.
- - Operating Speed: Rated for operation at speeds up to a maximum rate of 3600 cycles per hour.
- -Rated Insulation Volts & Operational Voltage : Has a specified insulation resistance greater than >10 MOhm for signalling circuits with operational voltages within the range <=690 V AC or <=300 V DC
Additional Information
- Country of Origin: IN
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 5 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 1.00
- Package Width: 1.00
- Package Height: 1.00
- Package Weight: 2.10
