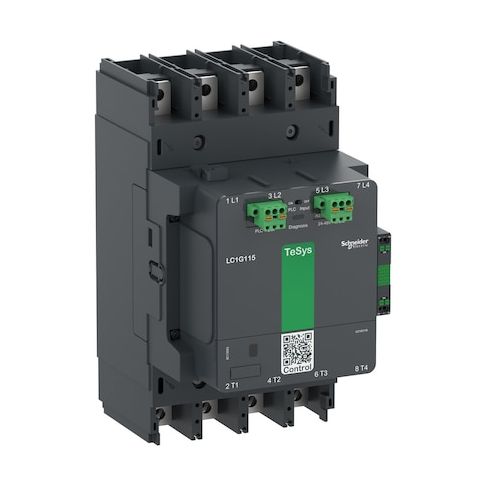

IEC Magnetic Contactor, 1NC/1NO, 24V-48V AC/DC, 4 P, Spring Type MPN:LC1G1504BEEA

• Schneider Electric IEC Magnetic Contactor is an electrically operated switching device rated for operation within the specified IEC standards. This 4-pole unit uses an electromagnetic coil to open or close contacts and includes auxiliary contacts formed as 1NC/1NO (2 total). It is compatible with standard control panel configurations as per IEC specifications.

  - Item type: IEC Magnetic Contactor

• 4 poles
• single phase
• - Coil voltage: 24V-48V AC/DC
• - Auxiliary contacts: 2 total (1NC/1NO)
• - Mounting style: Plate
• - Terminal connection type: Spring Type
• - Maximum voltage rating: rated for operation up to 1000V AC within specified conditions
• - IP rating: IP20
• - Embedded surge suppressor: does not include an integrated surge suppression device
• - Frequency: 50/60 Hz
• - Full Load Amps: Inductive 230 A
• Resistive 275 A
• - Full Load Current: Inductive 150 A
• Resistive 275 A
• - Mechanical operating durability: has a mechanical lifespan of approximately 8 million cycles under normal operating conditions
• - Operating temperature: rated for operation within the temperature range of -13 °F to 140 °F
• - Series: TeSys Giga
• - Standards: CSA C22.2 No 60947-4-1, EN/IEC 60947-4-1, EN/IEC 60947-5-1, JIS C8201-4-1, JIS C8201-5-1, UL 60947-4-1
• - Dimensions (L x W x H): Depth 7.6 in
• Width 5.63 in
• Height 10.04 in
