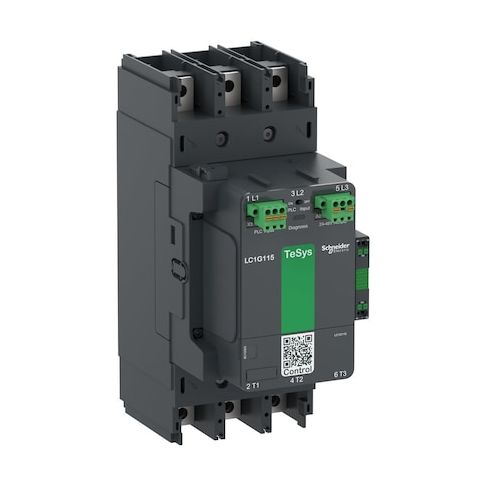

IEC Magnetic Contactor, 1NC/1NO, 24V-48V AC/DC, 3 P, Spring Type MPN:LC1G115BEEA
Free Shipping
In Stock
The IEC Magnetic Contactor from Schneider is a reliable and efficient switching device designed for control panels. Its 3-pole configuration and 24V-48V AC/DC coil voltage make it suitable for various applications, including industrial automation, HVAC systems, and renewable energy installations. The device features auxiliary contacts, spring-type terminal connections, and a compact design that saves space in control panels. With a high mechanical operating durability of 8 million cycles and a wide operating temperature range, this contactor ensures reliable performance in demanding environments. Its compliance with international standards, including CSA and UL, makes it a trusted choice for control panel manufacturers and installers worldwide.
Top product features:
- This 3-pole device is equipped with auxiliary contacts as specified and features compatible terminal connections suitable for standard installation in control panels.
- It utilizes electromagnetic actuation for switching functions within its specified electrical ratings.
- It is rated for operation within the specified IEC standards.
Top product applications:
- Motor control systems
- Industrial automation equipment
- Control panels for HVAC systems
An IEC Magnetic Contactor is an electrically operated switching device rated for operation within the specified IEC standards. It utilizes electromagnetic actuation for switching functions within its specified electrical ratings. This 3-pole device is equipped with auxiliary contacts as specified and features compatible terminal connections suitable for standard installation in control panels.
- Item: IEC Magnetic Contactor
- Series: TeSys Giga
- Phase: Single
- Poles: 3
- Contactor Style: IEC
- Mounting Style: Plate
- Terminal Connection Type: Spring Type
- - Auxiliary Contacts: 1NC/1NO
- Includes Auxiliary Contacts: Yes
- Number of Aux Contacts: 2
- - Coil Voltage: 24V-48V AC/DC
- - Embedded Surge Suppressor: No
- - Frequency: 50/60 Hz
- - Maximum Voltage Rating: 1000V AC
- - IP Rating: IP20
- - Maximum Operating Temperature: 140 Degrees F
- - Minimum Operating Temperature: -13 Degrees F
- - Mechanical Operating Durability: 8000000 cycles
- - Full Load Amps - Inductive: 210 A
- Full Load Amps - Resistive: 250 A
- - Full Load Current - Inductive: 115 A
- Full Load Current - Resistive: 250 A
- - Overall Dimensions: Depth 7.6 in
- Height 10.04 in
- Width 4.25 in
- - Standards: CSA C22.2 No 60947-4-1, EN/IEC 60947-4-1, EN/IEC 60947-5-1, JIS C8201-4-1, JIS C8201-5-1, UL 60947-4-1
Additional Information
- Country of Origin: CN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 15.16
- Package Width: 10.04
- Package Height: 9.06
- Package Weight: 11.60
