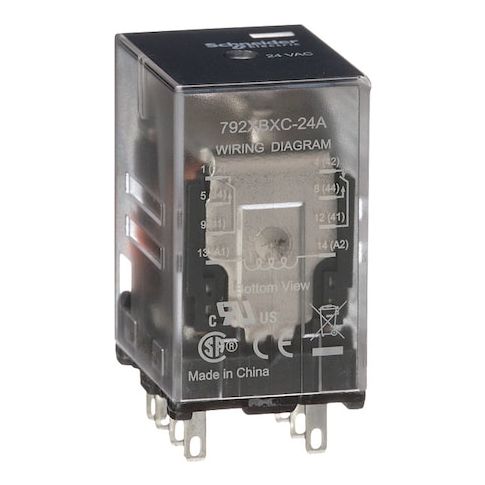

Plug-In, General Purpose Relay, Square, 12 A, 8 Pins, Faston Connector MPN:792XBXC-24A
Plug-In, General Purpose Relay, Square, 12 A, 8 Pins, Faston Connector
The Schneider Plug-In General Purpose Relay is a versatile and reliable solution for a wide range of applications. Its DPDT contact form and 12A current rating make it suitable for controlling high-power devices, while its 24V AC coil voltage and faston connector ensure easy integration into various systems. The relay's mechanical flag status indicator and manual push-to-test method provide clear status feedback and simplify troubleshooting. Ideal for use in industrial automation, HVAC systems, and other applications requiring high-current switching, this relay offers a reliable and efficient solution for controlling and monitoring electrical circuits.
Top product features:
- Plug-in design allows for easy installation and removal without the need for soldering or wiring.
- Faston connector provides a secure and reliable electrical connection.
- DPDT contact form enables the relay to control two separate circuits with a single coil.
Top product applications:
- Industrial Automation
- Manufacturing Control Systems
- Power Distribution and Control Panels
General Purpose Relay, Base Shape Square, Coil Voltage 24V AC, Contact Form DPDT, Current Rating 12 A, Electrical Connection Faston Connector, Number of Pins 8, Status Indicator Mechanical Flag, Contact Rating (AC) 12 A @ 120V, 12 A @ 277V, 12 A @ AC-1 (NO), 6 A @ AC-1 (NC), Contact Rating (DC) 12 A @ 30V, 12 A @ DC-1 (NO), 6 A @ DC-1 (NC), Horsepower @ 120V AC 1/2 hp, Horsepower @ 240V AC 1 hp, Mounting Style Plug-In, Push-To-Test Method Manual, Body Depth 1.07 in, Body Height 1.57 in
Additional Information
- Country of Origin: CN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 1.70
- Package Width: 1.10
- Package Height: 0.80
- Package Weight: 0.08
Product info last updated on January 15, 2026 3:25am UTC
Category: Industrial Electrical Controls and Automation
