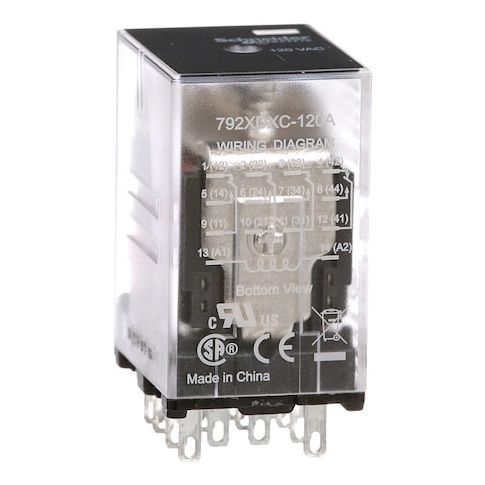

Plug-In, General Purpose Relay, Square, 6 A, 14 Pins, Faston Connector MPN:792XDXC-120A
Plug-In, General Purpose Relay, Square, 6 A, 14 Pins, Faston Connector
This Schneider general purpose relay is a versatile plug-in solution for a wide range of applications. Its 6A current rating and 14-pin Faston connector make it suitable for various industrial and commercial uses, including control circuits, lighting systems, and motor control. The relay's 4PDT contact form and mechanical flag status indicator provide reliable and easy-to-read operation. It can handle up to 1/3 horsepower at 120V AC and 1/2 horsepower at 240V AC, making it ideal for applications such as HVAC, lighting control, and conveyor systems. Its compact design and fast shipping make it a convenient choice for many industries.
Top product features:
- Plug-in design allows for easy installation and removal without the need for tools or wiring modifications.
- The relay has a contact form of 4PDT, enabling the switching of four separate circuits with a single relay.
- The mechanical flag status indicator provides visual confirmation of the relay's operating status.
Top product applications:
- Home Automation Systems
- Industrial Control Systems
- Medical Equipment Control Systems
General Purpose Relay, Base Shape Square, Coil Voltage 120V AC, Contact Form 4PDT, Current Rating 6 A, Electrical Connection Faston Connector, Number of Pins 14, Status Indicator Mechanical Flag, Contact Rating (AC) 3 A @ AC-1 (NC), 6 A @ 277V, 6 A @ AC-1 (NO), 8 A @ 120V, Contact Rating (DC) 3 A @ DC-1 (NC), 6 A @ DC-1 (NO), 8 A @ 30V, Horsepower @ 120V AC 1/3 hp, Horsepower @ 240V AC 1/2 hp, Mounting Style Plug-In, Push-To-Test Method No Button, Body Depth 1.37 in, Body Height 1.07 in
Additional Information
- Country of Origin: CN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 1.80
- Package Width: 1.20
- Package Height: 0.90
- Package Weight: 0.08
Product info last updated on January 15, 2026 3:20am UTC
Category: Industrial Electrical Controls and Automation
