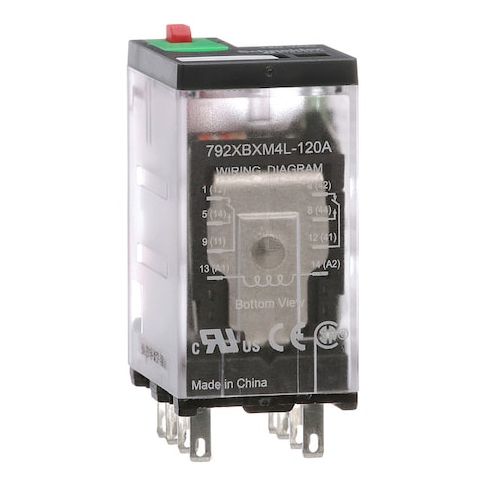

Plug-In, General Purpose Relay, Square, 12 A, 8 Pins, Faston Connector MPN:792XBXM4L-120A
Plug-In, General Purpose Relay, Square, 12 A, 8 Pins, Faston Connector
This plug-in general purpose relay is a versatile and reliable solution for various applications. With a square base shape and 8-pin Faston connector, it's easy to integrate into any system. The DPDT contact form allows for complex switching configurations, while the 12A current rating ensures high-power handling. Suitable for use in AC and DC systems, it can handle up to 1/2 hp at 120V AC and 1 hp at 240V AC. Ideal for industrial automation, control systems, and electrical panels, this relay offers a convenient plug-in design, status indicators, and a lockable push-to-test method for easy testing and maintenance.
Top product features:
- Plug-In design allows for easy installation and removal of the relay
- DPDT contact form provides two normally open and two normally closed contacts for flexible circuit control
- LED indicator and mechanical flag provide visual and tactile status indication of relay operation
Top product applications:
- Industrial Automation Systems
- Motor Control Circuits
- Control Panels
General Purpose Relay, Base Shape Square, Coil Voltage 120V AC, Contact Form DPDT, Current Rating 12 A, Electrical Connection Faston Connector, Flat Pin Width 0.02 in, Number of Pins 8, Status Indicator LED Indicator, Mechanical Flag, Contact Rating (AC) 12 A @ 120V, 12 A @ 277V, 12 A @ AC-1 (NO), 6 A @ AC-1 (NC), Contact Rating (DC) 12 A @ 30V, 12 A @ DC-1 (NO), 6 A @ DC-1 (NC), Horsepower @ 120V AC 1/2 hp, Horsepower @ 240V AC 1 hp, Mounting Style Plug-In, Push-To-Test Method Lockable
Additional Information
- Country of Origin: CN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 1.90
- Package Width: 1.20
- Package Height: 0.90
- Package Weight: 0.09
Product info last updated on January 15, 2026 3:20am UTC
Category: Industrial Electrical Controls and Automation
