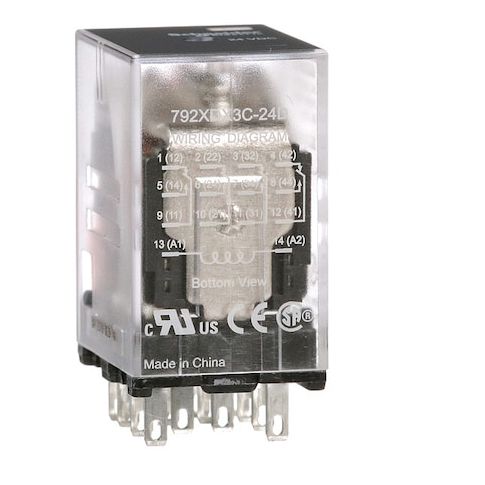

Plug-In, General Purpose Relay, Square, 3 A, 14 Pins, Faston Connector MPN:792XDX3C-24D
Plug-In, General Purpose Relay, Square, 3 A, 14 Pins, Faston Connector
The Schneider General Purpose Relay is a versatile and reliable plug-in solution for a wide range of applications. Its 3A current rating and faston connector make it suitable for use in industrial control systems, automation, and power distribution. The relay's 4PDT contact form and mechanical flag status indicator provide clear and reliable switching performance. Ideal for use in 120/240/277V AC and 30V DC systems, this relay can handle up to 1/16 hp at 120V AC and 1 hp at 240V AC. Its compact design and plug-in mounting style make it easy to integrate into existing systems, reducing downtime and increasing efficiency.
Top product features:
- Square base shape for easy mounting and installation
- Faston connector for secure and reliable electrical connection
- Mechanical flag status indicator for visual confirmation of relay status
Top product applications:
- Industrial control systems for manufacturing plants
- Automotive electronics for vehicles
- Home automation systems for residential applications
General Purpose Relay, Base Shape Square, Coil Voltage 24V DC, Contact Form 4PDT, Current Rating 3 A, Electrical Connection Faston Connector, Number of Pins 14, Status Indicator Mechanical Flag, Contact Rating (AC) 1.00 A @ AC-1 (NC), 2.00 A @ AC-1 (NO), 3 A @ 120/240/277V, Contact Rating (DC) 1 A @ DC-1 (NC), 2 A @ DC-1 (NO), 3 A @ 30V, Horsepower @ 120V AC 1/16 hp, Horsepower @ 240V AC 1 hp, Mounting Style Plug-In, Push-To-Test Method No Button, Body Depth 1.37 in, Body Height 1.07 in
Additional Information
- Country of Origin: CN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 1.90
- Package Width: 1.10
- Package Height: 0.90
- Package Weight: 0.08
Product info last updated on January 15, 2026 3:19am UTC
Category: Industrial Electrical Controls and Automation
