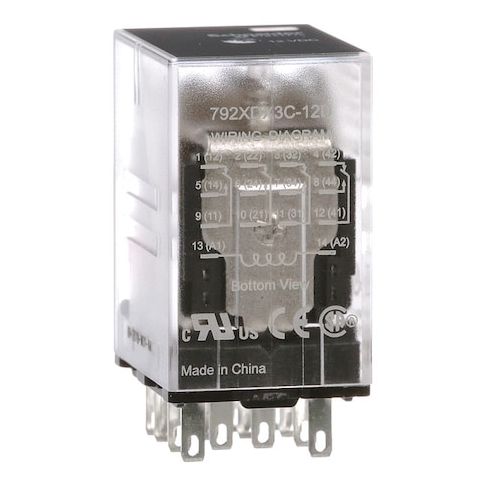

Plug-In, General Purpose Relay, Square, 3 A, 14 Pins, Faston Connector MPN:792XDX3C-12D
Plug-In, General Purpose Relay, Square, 3 A, 14 Pins, Faston Connector
The Schneider Plug-In General Purpose Relay is a versatile and reliable component ideal for a wide range of applications, including industrial automation, process control, and building management systems. Its square base shape and 14-pin Faston connector make it easy to integrate into existing systems. With a current rating of 3A and a contact rating of up to 2A, this relay can handle demanding tasks while minimizing energy consumption. Its compact design and mechanical flag status indicator simplify troubleshooting and maintenance. Suitable for use in 12V DC systems, this relay is a valuable addition to any control panel or automation system.
Top product features:
- Plug-in design allows for easy installation and removal
- Faston connector provides a secure and reliable electrical connection
- Mechanical flag status indicator provides visual confirmation of relay status
Top product applications:
- Industrial Automation Systems
- Power Distribution Panels
- Machine Control Systems
General Purpose Relay, Base Shape Square, Coil Voltage 12V DC, Contact Form 4PDT, Current Rating 3 A, Electrical Connection Faston Connector, Number of Pins 14, Status Indicator Mechanical Flag, Contact Rating (AC) 1.00 A @ AC-1 (NC), 2.00 A @ AC-1 (NO), 3 A @ 120/240/277V, Contact Rating (DC) 1 A @ DC-1 (NC), 2 A @ DC-1 (NO), 3 A @ 30V, Horsepower @ 120V AC 1/16 hp, Horsepower @ 240V AC 1 hp, Mounting Style Plug-In, Push-To-Test Method No Button, Body Depth 1.37 in, Body Height 1.07 in
Additional Information
- Country of Origin: CN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 1.80
- Package Width: 1.10
- Package Height: 0.90
- Package Weight: 0.08
Product info last updated on January 15, 2026 3:19am UTC
Category: Industrial Electrical Controls and Automation
