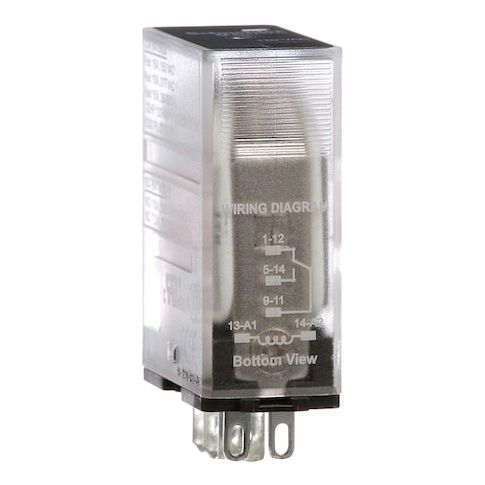

Socket, General Purpose Relay, Square, 15 A, 5 Pins, Faston Connector MPN:781XAXRC-120A
Socket, General Purpose Relay, Square, 15 A, 5 Pins, Faston Connector
This general purpose relay from Schneider is a reliable and efficient solution for various applications. Its square base shape and socket mounting style make it easy to integrate into new or existing systems. With a current rating of 15A and a contact rating of up to 15A at 120-277V, it can handle a range of loads. The relay's faston terminal connection and mechanical flag status indicator provide a simple and visual way to monitor its operation. Suitable for use in industrial control systems, machine automation, and other applications where reliable switching is required.
Top product features:
- Square base shape design
- SPDT contact form
- Faston terminal electrical connection
Top product applications:
- Industrial Automation Control Systems
- Motor Control and Protection Circuits
- Machine Control and Monitoring Systems
General Purpose Relay, Base Shape Square, Coil Voltage 120V AC, Contact Form SPDT, Current Rating 15 A, Electrical Connection Faston Terminal, Number of Pins 5, Status Indicator Mechanical Flag, Contact Rating (AC) 10 A @ 151/277V, 15 A @ 120 to 277/120/150/250V (NO), 7.55 A @ 250V (NC), Contact Rating (DC) 15 A @ 28V (NO), 7.55 A @ 28V (NC), Horsepower @ 120V AC 1/2 hp, Horsepower @ 240V AC 1 hp, Mounting Style Socket, Push-To-Test Method No Button, Body Depth 1.39 in, Body Height 1.07 in
Additional Information
- Country of Origin: CN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 1.80
- Package Width: 1.20
- Package Height: 0.60
- Package Weight: 0.05
Product info last updated on January 15, 2026 3:19am UTC
Category: Industrial Electrical Controls and Automation
