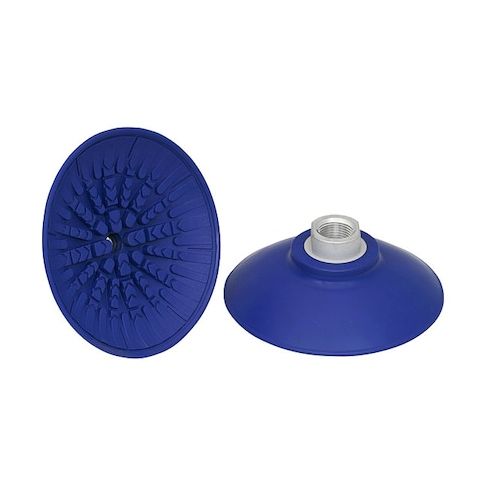

Flat Suction Cup for Sheet handling MPN:10.01.01.10516
Flat Suction Cup for Sheet handling
The SCHMALZ Flat Suction Cup is a reliable and efficient solution for handling sheet metal. Designed for use with maximum vacuum pressure of -0.6 bar, this cup ensures secure and controlled handling of metal sheets. Its flat design and 60 Shore A hardness make it ideal for applications where precision and durability are crucial. Suitable for use in various industries, including manufacturing and fabrication, this cup provides a cost-effective and efficient way to handle sheet metal, reducing the risk of damage and increasing productivity. Its compact size and lightweight design also make it easy to integrate into existing systems.
Top product features:
- Handles sheet metal with a flat suction cup design.
- Has a maximum vacuum pressure of -0.6 bar for secure handling.
- Features a durable NBR pad with a hardness of 60 Shore A for reliable performance.
Top product applications:
- Handling Sheet Metal
- Sheet Metal Fabrication
- Metalworking Operations
Item Vacuum Pad Assembly, Adapter Material Aluminum, Durometer 60 A, For Use With Handling Sheet Metal, Maximum Vacuum Pressure -0.6 bar, Number of Folds 0, Outside Diameter 100 mm, Overall Height 51 mm, Pad Color Blue, Pad Diameter 110 mm, Hardness 60 Shore A, Pad Height 36 mm, Pad Material NBR, Pad Type Flat, Port Size 3/8 in, Port Type G, Series SAF, Standards DIN ISO 3302-1 M3, Stroke 9.5 mm, Weight 67.2 g
Additional Information
- Country of Origin: CH
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 11.80
- Package Width: 10.30
- Package Height: 3.20
- Package Weight: 0.88
Product info last updated on March 2, 2026 8:28pm UTC
