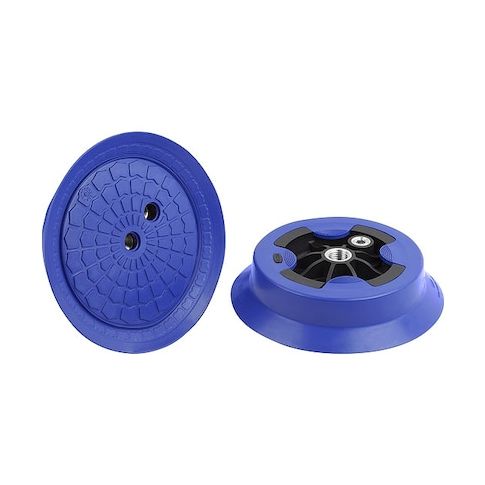

Flat Suction Plate MPN:10.01.01.14316
Flat Suction Plate
The Flat Suction Plate from SCHMALZ is a reliable and efficient component for various industrial applications. Designed for use in suction cups and vacuum systems, this plate provides a secure and stable connection to surfaces. Its durable NBR material and 60 Shore A hardness ensure a long-lasting performance, even in demanding environments. Suitable for use in manufacturing, logistics, and material handling, this suction plate offers a cost-effective solution for applications requiring precision and reliability, such as pick-and-place systems, robotic arms, and automated assembly lines. Its compact design and easy installation make it an ideal choice for a wide range of industries.
Top product features:
- Flat design for easy cleaning and maintenance
- Pad material NBR for high suction power and durability
- Port size 1/4 in for compatibility with standard fittings
Top product applications:
- Vacuum lift systems for handling and processing flat materials such as glass, steel, or aluminum panels.
- Automotive manufacturing for lifting and moving large flat components like dashboards or hood panels.
- Medical device assembly for handling and processing flat components like circuit boards or medical implants.
Item Suction Plate Assembly, Durometer 60 A, Outside Diameter 125 mm, Overall Height 40.8 mm, Pad Color Gray, Pad Diameter 132 mm, Hardness 60 Shore A, Pad Height 29 mm, Pad Material NBR, Pad Type Plate, Port Size 1/4 in, Port Type G, Series SUF, Stroke 8 mm, Weight 195 g
Additional Information
- Country of Origin: DE
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 13 days
- Minimum Order Quantity: 5
- Unit of Measure: EA
- Package Length: 12.00
- Package Width: 9.00
- Package Height: 4.00
- Package Weight: 0.50
Product info last updated on January 17, 2026 4:55am UTC
Category: Compressors, Air Tanks and Pneumatic Parts
