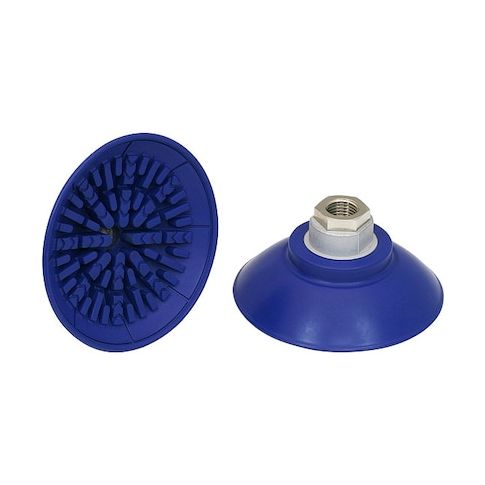

Flat Suction Cup for Sheet handling MPN:10.01.01.10690
Flat Suction Cup for Sheet handling
The SCHMALZ Flat Suction Cup is a reliable solution for handling sheet metal with precision and accuracy. Its nickel-plated adapter and durable NBR pad ensure a secure grip, while the adjustable vacuum pressure up to -0.6 bar provides optimal handling capabilities. Suitable for various sheet metal applications, this cup is ideal for use in manufacturing, assembly, and processing industries. Its compact design and lightweight construction make it easy to integrate into existing workflows, increasing efficiency and productivity. With a minimum order quantity of 5 units, businesses can stock up and ensure a consistent supply of this reliable sheet handling solution.
Top product features:
- Handles sheet metal with suction
- Has a maximum vacuum pressure of -0.6 bar
- Has a flat pad type design
Top product applications:
- Sheet Metal Handling
- Automotive Industry Parts Handling
- Assembly Line Material Handling
Item Vacuum Pad Assembly, Adapter Material Nickel Plated, Durometer 60 A, For Use With Handling Sheet Metal, Maximum Vacuum Pressure -0.6 bar, Number of Folds 0, Outside Diameter 80 mm, Overall Height 60 mm, Pad Color Blue, Pad Diameter 89 mm, Hardness 60 Shore A, Pad Height 40 mm, Pad Material NBR, Pad Type Flat, Port Size 1/4 in, Port Type G, Series SAF, Standards DIN ISO 3302-1 M3, Stroke 7.6 mm, Weight 56.2 g
Additional Information
- Country of Origin: DE
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 13 days
- Minimum Order Quantity: 5
- Unit of Measure: EA
- Package Length: 9.00
- Package Width: 6.00
- Package Height: 4.00
- Package Weight: 0.30
