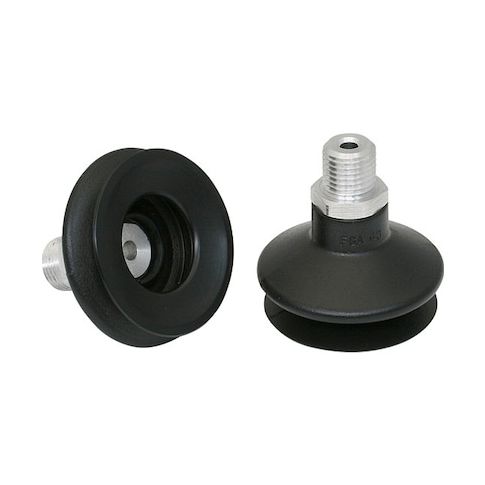

Bellow Suction Cup, 1.5 MPN:10.01.06.00082
Bellow Suction Cup, 1.5
The SCHMALZ Bellow Suction Cup is a versatile and reliable vacuum pad assembly designed for heavy-duty applications. Its 55A durometer and aluminum adapter material ensure a secure grip and durability. With a maximum vacuum pressure of -0.6 bar and 1.5 folds, this bellow suction cup provides a stable and consistent seal. Suitable for use in industries such as manufacturing, logistics, and healthcare, this product excels in applications where a secure hold is critical, including lifting and moving heavy equipment, machinery, and medical devices. Its compact size and lightweight design make it an ideal solution for a variety of tasks.
Top product features:
- Bellows design allows for flexible movement and adaptation to irregular surfaces
- Vacuum pressure up to -0.6 bar is maintained for secure attachment
- Pad material NBR provides sealing and durability in a variety of environments
Top product applications:
- Automotive manufacturing
- Robotics and automation
- Medical device assembly
Item Vacuum Pad Assembly, Adapter Material Aluminum, Durometer 55 A, Maximum Vacuum Pressure -0.6 bar, Number of Folds 1.5, Outside Diameter 43 mm, Overall Height 42.6 mm, Pad Color Black, Pad Diameter 47.5 mm, Hardness 55 Shore A, Pad Height 31.6 mm, Pad Material NBR, Pad Type Bellows, Port Size 1/4 in, Port Type G, Series FSGA, Standards DIN ISO 3302-1 M3, Stroke 10 mm, Weight 19 g
Additional Information
- Country of Origin: DE
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 6 days
- Minimum Order Quantity: 10
- Unit of Measure: EA
- Package Length: 10.00
- Package Width: 6.00
- Package Height: 4.00
- Package Weight: 0.10
Product info last updated on March 10, 2026 8:52pm UTC
Category: Compressors, Air Tanks and Pneumatic Parts
