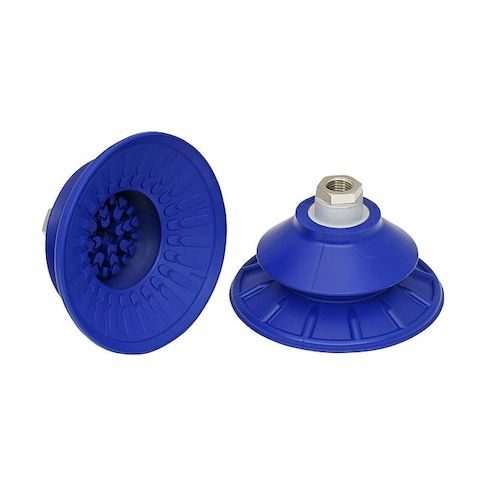

Bellow Suction cup for Sheet handling MPN:10.01.06.00853
Bellow Suction cup for Sheet handling
The SCHMALZ Bellow Suction Cup is a versatile and reliable tool for handling sheet metal. Its nickel-plated adapter and NBR pad ensure a strong vacuum seal, while its 60 Shore A hardness provides durability and resistance to wear. With a maximum vacuum pressure of -0.6 bar and a stroke of 25.8 mm, this suction cup can handle a variety of sheet metal applications. Ideal for industries such as manufacturing, construction, and metalworking, this bellow suction cup provides efficient and secure handling of sheet metal, reducing the risk of damage and improving overall productivity.
Top product features:
- Bellow suction cup design allows for handling sheet metal
- The vacuum pad assembly is made of nickel-plated material
- The pad material is NBR, providing a specific hardness of 60 Shore A
Top product applications:
- Sheet metal handling
- Sheet metal fabrication
- Metal stamping and punching
Item Vacuum Pad Assembly, Adapter Material Nickel Plated, Durometer 60 A, For Use With Handling Sheet Metal, Maximum Vacuum Pressure -0.6 bar, Number of Folds 1.5, Outside Diameter 100 mm, Overall Height 81.8 mm, Pad Color Blue, Pad Diameter 110 mm, Hardness 60 Shore A, Pad Height 61.8 mm, Pad Material NBR, Pad Type Bellows, Port Size 1/4 in, Port Type G, Series SAB, Standards DIN ISO 3302-1 M3, Stroke 25.8 mm, Weight 101.9 g
Additional Information
- Country of Origin: DE
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 9.80
- Package Width: 6.00
- Package Height: 3.70
- Package Weight: 1.27
Product info last updated on March 1, 2026 11:14pm UTC
Category: Compressors, Air Tanks and Pneumatic Parts
