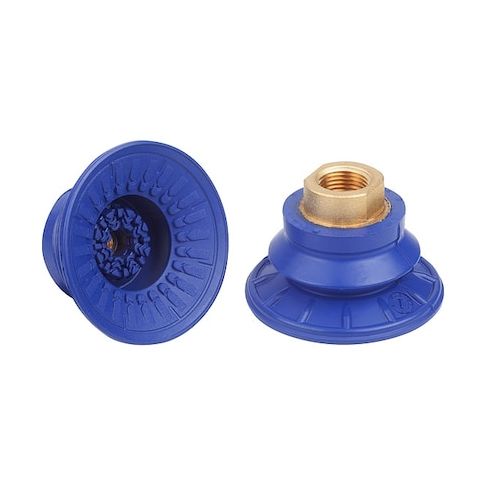

Bellow Suction cup for Sheet handling MPN:10.01.06.01972
Bellow Suction cup for Sheet handling
Effortlessly handle sheet metal with the SCHMALZ Bellow Suction Cup, designed for heavy-duty applications. The vacuum pad assembly features a durable brass adapter and a flexible NBR bellow with a hardness of 60 Shore A, ensuring a secure grip on a wide range of sheet metal types. With a maximum vacuum pressure of -0.6 bar and a stroke of 14.5 mm, this suction cup excels at handling sheet metal with 1.5 folds. Ideal for industries such as manufacturing, construction, and automotive, this product offers increased efficiency and reduced labor costs. Its compact design also makes it easy to integrate into existing workflows.
Top product features:
- Suction cup creates a vacuum pressure of -0.6 bar for secure handling of sheet metal.
- Material is brass for durability and resistance to corrosion.
- Pad is made of NBR for flexibility and resistance to abrasion.
Top product applications:
- Sheet metal handling
- Handling of thin metal sheets
- Vacuum handling of metal sheets
Item Vacuum Pad Assembly, Adapter Material Brass, Durometer 60 A, For Use With Handling Sheet Metal, Maximum Vacuum Pressure -0.6 bar, Number of Folds 1.5, Outside Diameter 60 mm, Overall Height 56.3 mm, Pad Color Blue, Pad Diameter 67 mm, Hardness 60 Shore A, Pad Height 41.3 mm, Pad Material NBR, Pad Type Bellows, Port Size 3/8 in, Port Type NPT, Series SAB, Standards DIN ISO 3302-1 M3, Stroke 14.5 mm, Weight 40 g
Additional Information
- Country of Origin: DE
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 10.50
- Package Width: 5.50
- Package Height: 2.50
- Package Weight: 0.98
Product info last updated on February 22, 2026 10:24am UTC
Category: Compressors, Air Tanks and Pneumatic Parts
