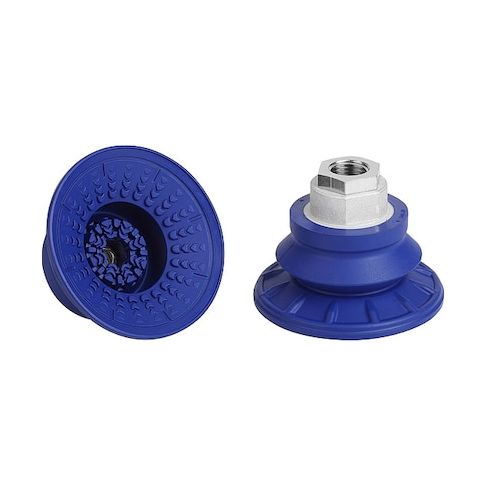

Bellow Suction cup for Sheet handling MPN:10.01.06.00852
Bellow Suction cup for Sheet handling
The SCHMALZ Bellow Suction Cup for Sheet Handling is a reliable and efficient solution for handling sheet metal. Designed for use in various industries, this vacuum pad assembly features a nickel-plated adapter and a durable NBR pad with a hardness of 60 Shore A. With a maximum vacuum pressure of -0.6 bar and a stroke of 14.5 mm, it provides a secure grip on sheets, reducing the risk of damage and improving handling accuracy. Suitable for applications such as metal fabrication, manufacturing, and assembly, this suction cup ensures smooth and precise sheet movement, increasing productivity and reducing labor costs.
Top product features:
- Vacuum Pad Assembly is designed for handling sheet metal.
- The product has a maximum vacuum pressure of -0.6 bar.
- The pad has a stroke of 14.5 mm.
Top product applications:
- Sheet metal handling
- Sheet metal fabrication
- Automotive manufacturing
Item Vacuum Pad Assembly, Adapter Material Nickel Plated, Durometer 60 A, For Use With Handling Sheet Metal, Maximum Vacuum Pressure -0.6 bar, Number of Folds 1.5, Outside Diameter 60 mm, Overall Height 66.3 mm, Pad Color Blue, Pad Diameter 67 mm, Hardness 60 Shore A, Pad Height 46.3 mm, Pad Material NBR, Pad Type Bellows, Port Size 1/4 in, Port Type G, Series SAB, Standards DIN ISO 3302-1 M3, Stroke 14.5 mm, Weight 52.9 g
Additional Information
- Country of Origin: IN
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 13 days
- Minimum Order Quantity: 5
- Unit of Measure: EA
- Package Length: 9.00
- Package Width: 6.00
- Package Height: 4.00
- Package Weight: 0.30
Product info last updated on May 5, 2026 1:07am UTC
Category: Compressors, Air Tanks and Pneumatic Parts
