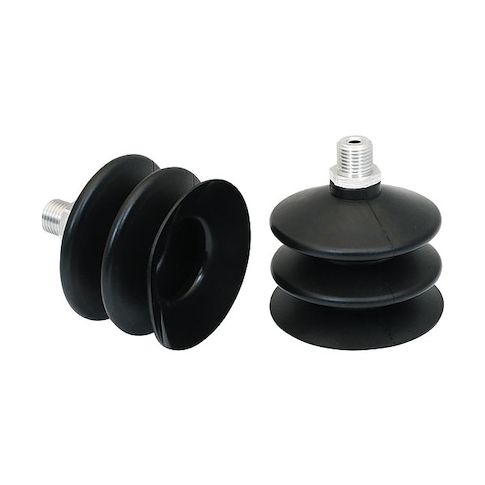

Bellow Suction Cup, 2.5 MPN:10.01.06.00032
Bellow Suction Cup, 2.5
The SCHMALZ Bellow Suction Cup is a versatile and reliable solution for various applications, including vacuum lifting, material handling, and more. Its multi-bellows design provides a secure grip on surfaces, while its aluminum adapter and NBR pad ensure durability and resistance to wear. With a maximum vacuum pressure of -0.6 bar and a stroke of 29 mm, this suction cup is ideal for use in a range of industries, including manufacturing, logistics, and warehousing. Its compact size and lightweight design make it easy to integrate into existing systems, offering a reliable and efficient solution for heavy-duty applications.
Top product features:
- Multi-Bellows design for improved suction and flexibility
- Vacuum pressure up to -0.6 bar for reliable grip
- Pad material NBR for durability and resistance to chemicals
Top product applications:
- Vacuum lifting of heavy loads in the manufacturing industry
- Automotive manufacturing for lifting and moving heavy parts
- Material handling in the aerospace industry for lifting and moving large components
Item Vacuum Pad Assembly, Adapter Material Aluminum, Durometer 55 A, Maximum Vacuum Pressure -0.6 bar, Number of Folds 2.5, Outside Diameter 62 mm, Overall Height 69 mm, Pad Color Black, Pad Diameter 65 mm, Hardness 55 Shore A, Pad Height 58 mm, Pad Material NBR, Pad Type Multi-Bellows, Port Size 1/4 in, Port Type G, Series FSG, Standards DIN ISO 3302-1 M3, Stroke 29 mm, Weight 60 g
Additional Information
- Country of Origin: DE
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 13 days
- Minimum Order Quantity: 5
- Unit of Measure: EA
- Package Length: 9.00
- Package Width: 6.00
- Package Height: 4.00
- Package Weight: 0.11
Product info last updated on March 8, 2026 12:23am UTC
