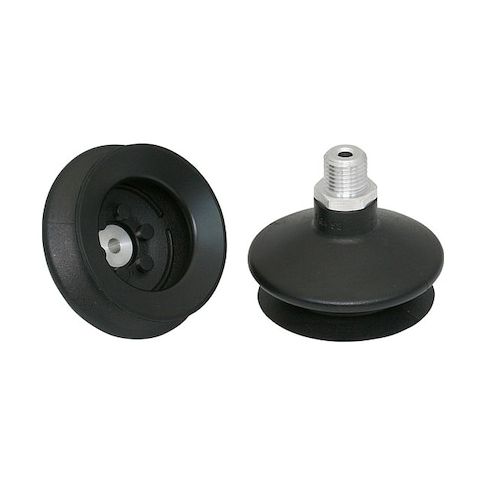

Bellow Suction Cup, 1.5 MPN:10.01.06.00083
Bellow Suction Cup, 1.5
Experience seamless vacuum handling with the SCHMALZ Bellow Suction Cup, ideal for applications requiring precise and reliable vacuum lift and release. Its 55A durometer aluminum adapter and NBR bellow material ensure optimal performance and durability. The cup's 1.5 folds and 60mm diameter provide a secure grip, while its 15mm stroke and -0.6 bar maximum vacuum pressure enable smooth and controlled movement. Suitable for use in various industries, including manufacturing, logistics, and material handling, this suction cup is perfect for handling heavy or delicate objects, and its compact design makes it easy to integrate into existing systems.
Top product features:
- Bellows design allows for flexible movement and adaptability to changing surfaces
- Vacuum pad assembly creates a maximum vacuum pressure of -0.6 bar
- Pad material NBR provides a hardness of 55 Shore A, suitable for a wide range of applications
Top product applications:
- Industrial Automation
- Vacuum conveyance systems
- Robotics and machine tool applications
Item Vacuum Pad Assembly, Adapter Material Aluminum, Durometer 55 A, Maximum Vacuum Pressure -0.6 bar, Number of Folds 1.5, Outside Diameter 53 mm, Overall Height 49 mm, Pad Color Black, Pad Diameter 60 mm, Hardness 55 Shore A, Pad Height 38 mm, Pad Material NBR, Pad Type Bellows, Port Size 1/4 in, Port Type G, Series FSGA, Standards DIN ISO 3302-1 M3, Stroke 15 mm, Weight 27 g
Additional Information
- Country of Origin: DE
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 2.30
- Package Width: 2.30
- Package Height: 1.70
- Package Weight: 6.50
Product info last updated on February 13, 2026 10:38am UTC
Category: Compressors, Air Tanks and Pneumatic Parts
