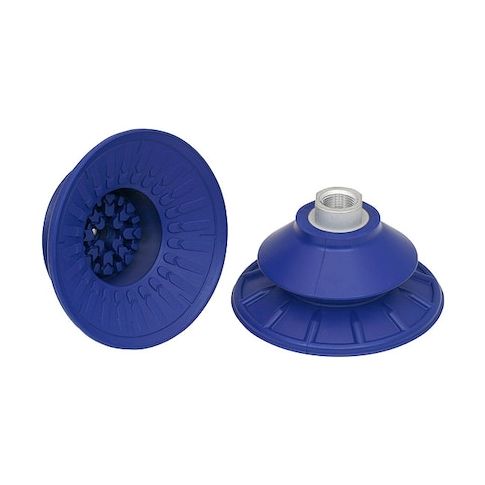

Bellow Suction cup for Sheet handling MPN:10.01.06.00678
Bellow Suction cup for Sheet handling
The SCHMALZ Bellow Suction Cup for Sheet handling is a versatile and reliable solution for handling sheet metal with precision and ease. Its bellows design allows for a maximum vacuum pressure of -0.6 bar, ensuring a secure grip on various sheet metal sizes. Ideal for use in manufacturing, fabrication, and assembly lines, this suction cup is designed for repetitive tasks, reducing fatigue and increasing productivity. Its compact size and lightweight design make it easy to maneuver, while its durable construction withstands the rigors of frequent use, extending its lifespan and minimizing downtime.
Top product features:
- The product has a bellow suction cup design for handling sheet metal.
- It can generate a maximum vacuum pressure of -0.6 bar.
- It has a pad material of NBR with a hardness of 60 Shore A.
Top product applications:
- Sheet metal handling
- Handling of large and heavy sheet metal
- Pick and place of thin sheet metal
Item Vacuum Pad Assembly, Adapter Material Aluminum, Durometer 60 A, For Use With Handling Sheet Metal, Maximum Vacuum Pressure -0.6 bar, Number of Folds 1.5, Outside Diameter 100 mm, Overall Height 71.6 mm, Pad Color Blue, Pad Diameter 110 mm, Hardness 60 Shore A, Pad Height 56.6 mm, Pad Material NBR, Pad Type Bellows, Port Size 3/8 in, Port Type G, Series SAB, Standards DIN ISO 3302-1 M3, Stroke 25.8 mm, Weight 88.2 g
Additional Information
- Country of Origin: DE
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 10.70
- Package Width: 6.20
- Package Height: 3.20
- Package Weight: 0.88
Product info last updated on February 2, 2026 2:59pm UTC
Category: Compressors, Air Tanks and Pneumatic Parts
