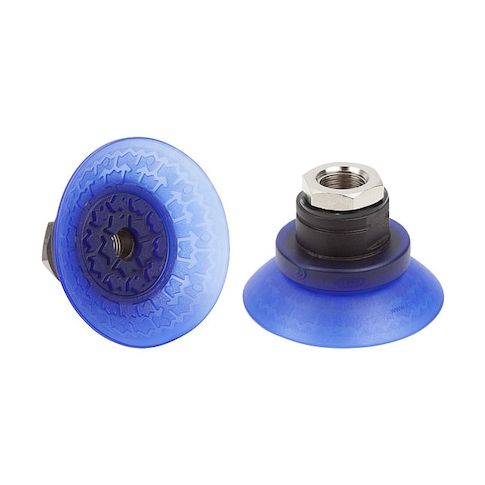

Bell Suction Cup for Sheet handling MPN:10.01.19.00182
Bell Suction Cup for Sheet handling
The SCHMALZ Bell Suction Cup for Sheet handling is a reliable and efficient solution for managing sheet metal in various industries. Designed for use with handling sheet metal, this vacuum pad assembly features a Durometer 85 A rating, ensuring a secure grip on even the most delicate materials. The deep pad type and 10.9 mm stroke allow for smooth and controlled movement, reducing the risk of damage or scratches. Ideal for applications in manufacturing, fabrication, and assembly, this suction cup provides a reliable and efficient way to handle sheet metal, improving productivity and reducing labor costs.
Top product features:
- Deep suction cup design for handling sheet metal
- Elastodur ED material for durable and long-lasting performance
- Port size of 1/4 in with port type G for efficient air flow and vacuum control
Top product applications:
- Sheet metal fabrication
- Sheet metal forming
- Sheet metal cutting and punching
Item Vacuum Pad Assembly, Durometer 85 A, For Use With Handling Sheet Metal, Number of Folds 0, Outside Diameter 60 mm, Overall Height 55.2 mm, Pad Color Blue, Pad Diameter 69.7 mm, Hardness 85 Shore A, Pad Height 4.2 mm, Pad Material Elastodur ED, Pad Type Deep, Port Size 1/4 in, Port Type G, Series SAX, Stroke 10.9 mm, Weight 42.8 g
Additional Information
- Country of Origin: DE
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 13 days
- Minimum Order Quantity: 5
- Unit of Measure: EA
- Package Length: 9.00
- Package Width: 6.00
- Package Height: 4.00
- Package Weight: 0.30
