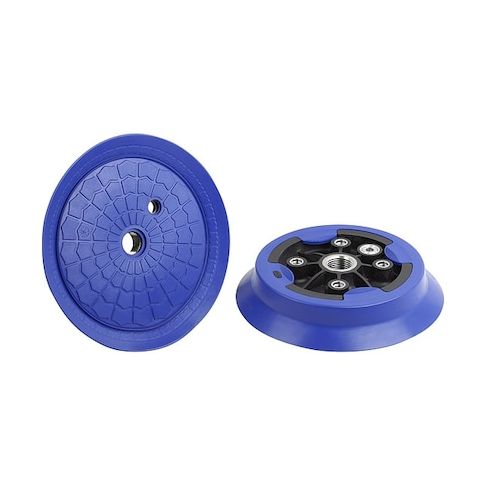

Flat Suction Plate MPN:10.01.01.14330
Flat Suction Plate
The SCHMALZ Flat Suction Plate is a versatile and reliable component for various industrial applications. Its durable NBR pad and 60 Shore A hardness ensure consistent suction performance, making it suitable for tasks such as material handling, packaging, and assembly. The plate's compact design and 9mm stroke allow for precise control and smooth movement. With a lead time of just 3 days, you can quickly integrate this suction plate into your production line. Ideal for use in manufacturing, warehousing, and logistics settings, the SCHMALZ Flat Suction Plate provides a reliable and efficient solution for a range of applications.
Top product features:
- Flat design allows for easy cleaning and maintenance.
- The suction plate has a stroke of 9 mm, enabling smooth and controlled movement.
- The NBR pad provides a durable and flexible material for reliable suction performance.
Top product applications:
- Vacuum Lift Systems for Handling Heavy or Large Items
- Assembly and Testing of Electronic Components
- Automated Material Handling in Industrial Settings
Item Suction Plate Assembly, Durometer 60 A, Outside Diameter 160 mm, Overall Height 44 mm, Pad Color Gray, Pad Diameter 170 mm, Hardness 60 Shore A, Pad Height 30 mm, Pad Material NBR, Pad Type Plate, Port Size 1/2 in, Port Type G, Series SUF, Stroke 9 mm, Weight 387 g
Additional Information
- Country of Origin: DE
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 3 days
- Minimum Order Quantity: 5
- Unit of Measure: EA
- Package Length: 12.00
- Package Width: 9.00
- Package Height: 4.00
- Package Weight: 8.59
Product info last updated on February 14, 2026 11:54am UTC
Category: Compressors, Air Tanks and Pneumatic Parts
