Flat Suction Cup MPN:10.01.01.14126

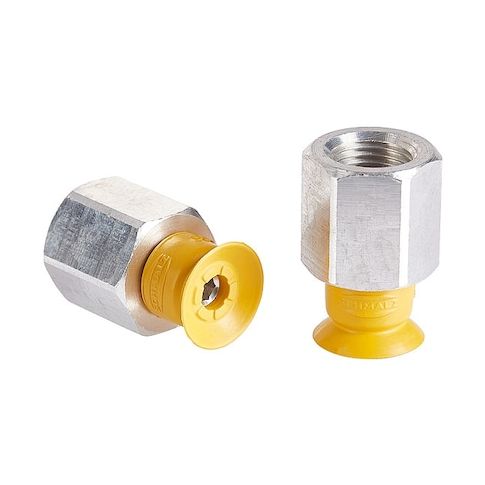

Flat Suction Cup
The SCHMALZ Flat Suction Cup is a versatile and reliable vacuum pad assembly designed for a wide range of applications. With its high durometer rating of 55 A and maximum vacuum pressure of -0.6 bar, this cup provides excellent suction and durability. Its flat design and small size make it ideal for use in tight spaces and delicate surfaces. Suitable for applications in the electronics, medical, and automotive industries, this cup is perfect for pick-and-place, assembly, and testing processes. Its ESD material ensures safe handling of sensitive components, making it a valuable tool for manufacturers and engineers.
Top product features:
- Flat design for easy installation and reduced obstruction
- Vacuum pressure of -0.6 bar for reliable suction
- Pad material NBR-ESD for electrostatic discharge protection
Top product applications:
- Vacuum lift systems for handling small parts in manufacturing environments
- Automotive assembly lines for picking and placing components
- Medical device assembly for handling small medical parts and components
Item Vacuum Pad Assembly, Durometer 55 A, Maximum Vacuum Pressure -0.6 bar, Number of Folds 0, Outside Diameter 18 mm, Overall Height 31.3 mm, Pad Color Yellow, Pad Diameter 2.6 mm, Hardness 55 Shore A, Pad Height 23.3 mm, Pad Material NBR-ESD, Pad Type Flat, Port Size 1/8 in, Port Type G, Series SUF, Stroke 1.8 mm, Weight 6.1 g
Additional Information
- Country of Origin: DE
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 13 days
- Minimum Order Quantity: 10
- Unit of Measure: EA
- Package Length: 11.25
- Package Width: 8.75
- Package Height: 6.00
- Package Weight: 0.13
Product info last updated on February 8, 2026 2:41am UTC
