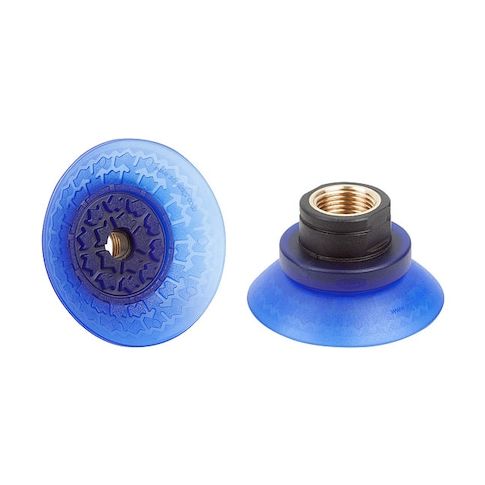

Bell Suction Cup for Sheet handling MPN:10.01.19.00152
Bell Suction Cup for Sheet handling
The SCHMALZ Bell Suction Cup for Sheet handling is a reliable and efficient solution for handling sheet metal. Its Durometer 85 A vacuum pad provides a strong grip, ensuring safe and secure transport of even the heaviest sheets. With its deep pad design and 3/8 in port, this suction cup can handle multiple folds and complex sheet metal configurations. Ideal for use in manufacturing, fabrication, and assembly applications, this suction cup reduces the risk of damage and labor costs associated with manual handling. Its compact size and lightweight design make it easy to integrate into existing workflows.
Top product features:
- Deep vacuum pad for handling sheet metal
- Elastodur ED material for durability and flexibility
- Port size 3/8 in for connection to vacuum systems
Top product applications:
- Sheet Metal Handling
- Handling of large and heavy sheet metal parts
- Automotive Industry
Item Vacuum Pad Assembly, Durometer 85 A, For Use With Handling Sheet Metal, Number of Folds 0, Outside Diameter 60 mm, Overall Height 45.4 mm, Pad Color Blue, Pad Diameter 69.7 mm, Hardness 85 Shore A, Pad Height 33.4 mm, Pad Material Elastodur ED, Pad Type Deep, Port Size 3/8 in, Port Type G, Series SAX, Stroke 10.9 mm, Weight 29.5 g
Additional Information
- Country of Origin: DE
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 3 days
- Minimum Order Quantity: 5
- Unit of Measure: EA
- Package Length: 10.00
- Package Width: 6.00
- Package Height: 4.00
- Package Weight: 0.10
Product info last updated on March 27, 2026 10:06am UTC
Category: Compressors, Air Tanks and Pneumatic Parts
