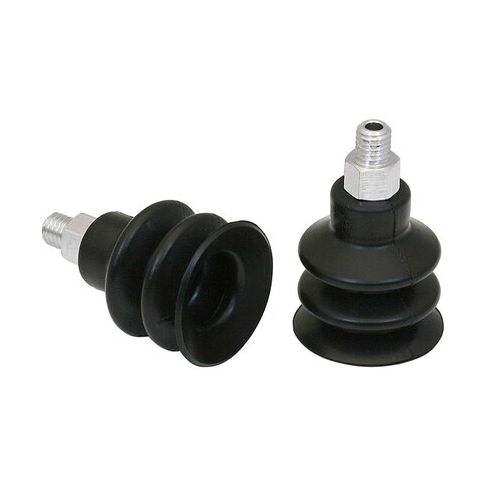

Bellow Suction Cup, 2.5 MPN:10.01.06.00029
Bellow Suction Cup, 2.5
This Bellow Suction Cup from SCHMALZ is a versatile and reliable vacuum pad assembly designed for demanding applications. With a maximum vacuum pressure of -0.6 bar and a durometer of 55 A, it provides a secure grip on various surfaces. The multi-bellows design offers a high degree of flexibility and adaptability, making it suitable for use in robotics, automation, and other industries where precise handling and maneuverability are crucial. Its compact size and lightweight design also make it ideal for use in confined spaces and applications where space is limited.
Top product features:
- Multi-Bellows design for improved suction and flexibility
- Vacuum pressure up to -0.6 bar for effective sealing
- Pad made from NBR material for durability and resistance to various environments
Top product applications:
- Robotics and automation: used in robotic grippers and manipulators to provide a secure and stable vacuum seal.
- Medical devices: used in medical devices such as surgical instruments and diagnostic equipment to provide a precise and reliable vacuum seal.
- Aerospace: used in aerospace applications such as satellite and spacecraft components to provide a reliable and consistent vacuum seal in extreme environments.
Item Vacuum Pad Assembly, Adapter Material Aluminum, Durometer 55 A, Maximum Vacuum Pressure -0.6 bar, Number of Folds 2.5, Outside Diameter 20 mm, Overall Height 32.1 mm, Pad Color Black, Pad Diameter 21 mm, Hardness 55 Shore A, Pad Height 27.1 mm, Pad Material NBR, Pad Type Multi-Bellows, Port Size M5, Port Type Metric, Series FSG, Standards DIN ISO 3302-1 M3, Stroke 9 mm, Weight 3.3 g
Additional Information
- Country of Origin: DE
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 13 days
- Minimum Order Quantity: 10
- Unit of Measure: EA
- Package Length: 11.25
- Package Width: 8.75
- Package Height: 6.00
- Package Weight: 0.07
Product info last updated on February 6, 2026 4:27am UTC
Category: Compressors, Air Tanks and Pneumatic Parts
