Flat Suction Cup for Sheet handling MPN:10.01.01.11367

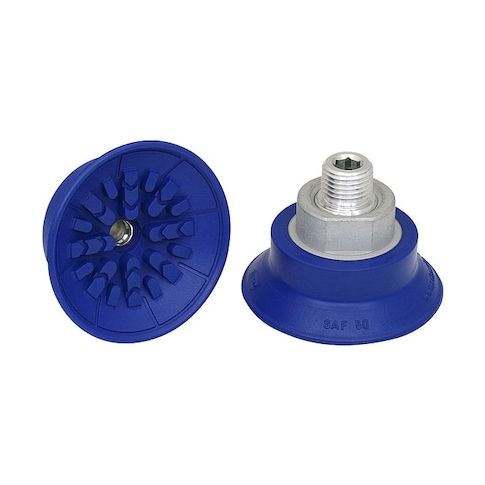

Flat Suction Cup for Sheet handling
The SCHMALZ Flat Suction Cup for Sheet handling is a reliable and efficient solution for handling sheet metal. Designed for use with flat sheets, this suction cup features a high-quality aluminum adapter and a durable NBR pad with a hardness of 60 Shore A. With a maximum vacuum pressure of -0.6 bar and a stroke of 5 mm, it provides a secure grip and easy movement of sheets. Ideal for various industries such as metalworking, woodworking, and manufacturing, this suction cup ensures smooth handling and precise control, reducing the risk of damage and improving overall productivity.
Top product features:
- Flat suction cup design for handling sheet metal
- Maximum vacuum pressure of -0.6 bar for secure grip
- Durometer 60 A hardness for durable and long-lasting performance
Top product applications:
- Sheet metal handling
- Handling thin sheet metal during manufacturing processes
- Assembly of flat sheet metal components
Item Vacuum Pad Assembly, Adapter Material Aluminum, Durometer 60 A, For Use With Handling Sheet Metal, Maximum Vacuum Pressure -0.6 bar, Number of Folds 0, Outside Diameter 50 mm, Overall Height 38 mm, Pad Color Blue, Pad Diameter 56 mm, Hardness 60 Shore A, Pad Height 28 mm, Pad Material NBR, Pad Type Flat, Port Size 3/8 in, Port Type G, Series SAF, Standards DIN ISO 3302-1 M3, Stroke 5 mm
Additional Information
- Country of Origin: DE
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 5 days
- Minimum Order Quantity: 5
- Unit of Measure: EA
- Package Length: 10.00
- Package Width: 6.00
- Package Height: 4.00
- Package Weight: 0.10
