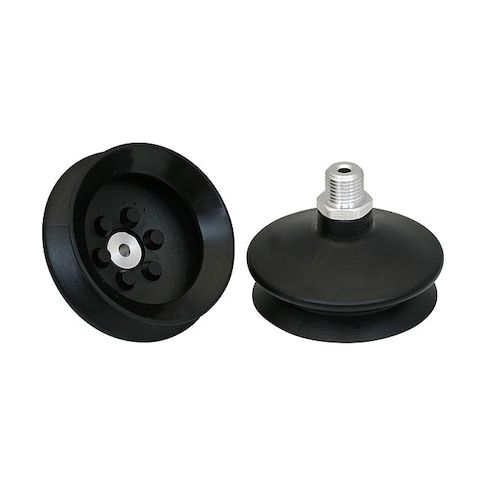

Bellow Suction Cup, 1.5 MPN:10.01.06.00685
Bellow Suction Cup, 1.5
The SCHMALZ Bellow Suction Cup is a versatile and reliable vacuum pad assembly designed for a wide range of applications. With a maximum vacuum pressure of -0.6 bar and a durometer rating of 55 A, this suction cup provides a secure grip on various surfaces. Its bellows design allows for easy installation and removal, making it ideal for use in industries such as automotive, aerospace, and manufacturing. The cup's aluminum construction and NBR material ensure durability and resistance to wear and tear. Suitable for applications requiring a high level of precision and reliability, this suction cup is a valuable addition to any setup.
Top product features:
- Bellows design allows for a flexible and adaptable suction cup
- Pad material NBR provides a durable and resistant surface
- Maximum vacuum pressure of -0.6 bar enables a strong and secure grip
Top product applications:
- Robotics and Automation: The Bellow Suction Cup can be used in robotics and automation applications to provide a secure vacuum seal for lifting and moving objects.
- Medical Equipment: The suction cup can be used in medical equipment such as patient lifts and transfer systems to provide a safe and secure way to move patients.
- Laboratory Equipment: The bellow suction cup can be used in laboratory equipment such as microscopes and other precision instruments to provide a stable and secure vacuum seal for samples and equipment.
Item Vacuum Pad Assembly, Adapter Material Aluminum, Durometer 55 A, Maximum Vacuum Pressure -0.6 bar, Number of Folds 1.5, Outside Diameter 63 mm, Overall Height 49 mm, Pad Color Black, Pad Diameter 68 mm, Hardness 55 Shore A, Pad Height 38 mm, Pad Material NBR, Pad Type Bellows, Port Size 1/4 in, Port Type G, Series FSGA, Standards DIN ISO 3302-1 M3, Stroke 15 mm, Weight 34 g
Additional Information
- Country of Origin: DE
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 21 days
- Minimum Order Quantity: 5
- Unit of Measure: EA
- Package Length: 10.00
- Package Width: 6.00
- Package Height: 4.00
- Package Weight: 0.10
Product info last updated on January 22, 2026 12:36pm UTC
Category: Compressors, Air Tanks and Pneumatic Parts
