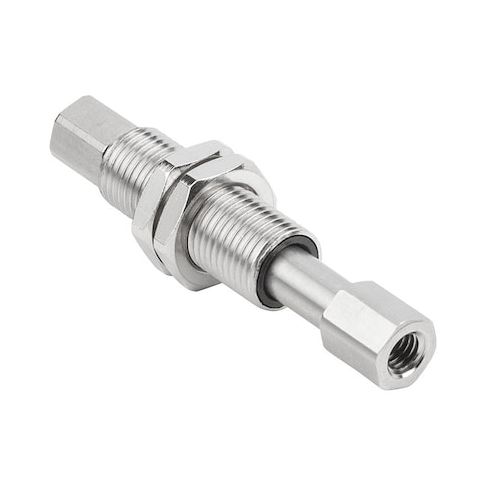

Spring plunger with internal spring MPN:10.01.02.01477
The SCHMALZ Spring Plunger with Internal Spring is a versatile vacuum buffer designed for use in pneumatic vacuum systems. Its rotating design enables swivel or rotary motion, making it ideal for applications where flexibility is crucial. The plunger's electrically insulating construction and compact dimensions make it suitable for use in a variety of industries, including pharmaceutical, medical, and laboratory settings. With a temperature range of 0-80°C and compliance with ISO 14644-1, this plunger provides stable pressure and smooth flow, even during intermittent or pulsed demand, ensuring optimal system performance and efficiency.
Top product features:
- Rotating buffer enables swivel or rotary motion during operation.
- Electrically insulating construction to resist electrical current transfer.
- Spring force of 1.02 N with a spring rate of 0.05 N/mm, and stroke length of 20 mm.
Top product applications:
- Pneumatic vacuum systems in cleanrooms
- Vacuum conveyors and vacuum lift systems
- Automated material handling systems
Vacuum buffer intended for use in pneumatic vacuum systems, designed to operate within defined ranges to stabilize pressure and smooth flow during intermittent or pulsed demand. Rotating vacuum buffer with swivel/rotary motion capability. It operates within a temperature range of 0 to 80 degrees Celsius and is part of the FSTIm series. Key Features:
- - Rotating buffer enables swivel or rotary motion during operation.
- - Electrically insulating construction to resist electrical current transfer.
- - External mounting with M10 screw size and 1 mm thread pitch.
- - Hex sizes of 8 mm and 14 mm for wrench fitting.
- - Operating temperature range from 0 to 80 degrees Celsius.
- - Compact dimensions: 10 mm outside diameter and 79.4 mm overall length.
- - Female metric pad-end port and vacuum end port, both sized M5.
- - Spring force of 1.02 N with a spring rate of 0.05 N/mm, and stroke length of 20 mm.
- - Compliance with ISO 14644-1 standard.
- - Lightweight design weighing 23.5 g.
Additional Information
- Country of Origin: DE
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 5.50
- Package Width: 5.50
- Package Height: 1.30
- Package Weight: 0.39
