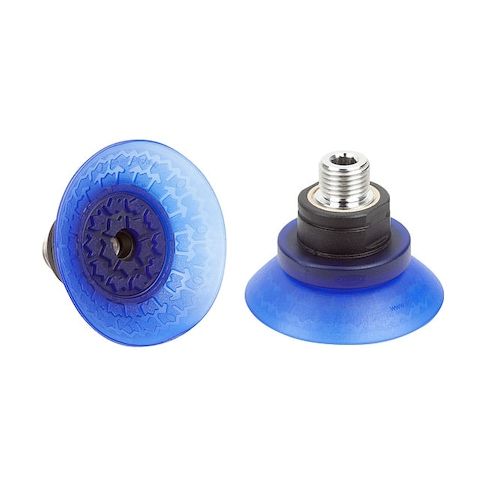

Bell Suction Cup for Sheet handling MPN:10.01.19.00215
Bell Suction Cup for Sheet handling
The SCHMALZ Bell Suction Cup for Sheet Handling is a reliable and efficient solution for handling sheet metal in various industries. Designed for use with flat sheets, this vacuum pad assembly features a durable Elastodur ED material and a deep pad design for secure grip. With a hardness of 85 Shore A, it provides excellent suction power and resistance to wear. Ideal for applications such as metal fabrication, manufacturing, and assembly, this suction cup ensures smooth and controlled sheet movement, reducing the risk of damage and improving productivity. Its compact size and lightweight design make it easy to integrate into existing workflows.
Top product features:
- Deep pad design for handling sheet metal
- Elastodur ED pad material for durability and resistance to wear
- Vacuum port size of 1/4 in for effective suction and handling of sheet metal
Top product applications:
- Sheet metal handling
- Sheet metal processing
- Fabrication of sheet metal parts
Item Vacuum Pad Assembly, Durometer 85 A, For Use With Handling Sheet Metal, Number of Folds 0, Outside Diameter 50 mm, Overall Height 44.1 mm, Pad Color Blue, Pad Diameter 58.4 mm, Hardness 85 Shore A, Pad Height 29.6 mm, Pad Material Elastodur ED, Pad Type Deep, Port Size 1/4 in, Port Type G, Series SAX, Stroke 8.4 mm, Weight 34.7 g
Additional Information
- Country of Origin: DE
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 2.80
- Package Width: 2.60
- Package Height: 2.10
- Package Weight: 0.40
