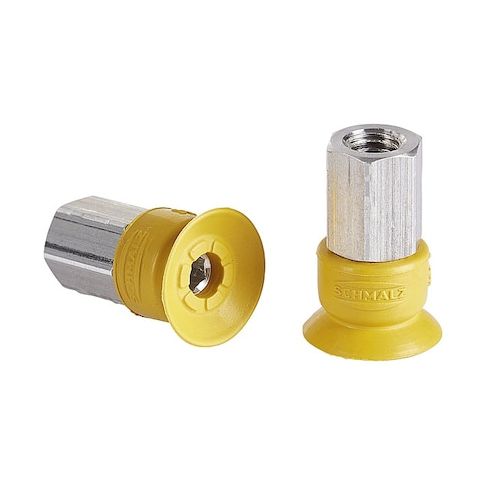

Flat Suction Cup MPN:10.01.01.14162
Flat Suction Cup
The SCHMALZ Flat Suction Cup is a versatile and reliable solution for various applications. Its flat design and high vacuum pressure of -0.6 bar make it suitable for use in robotics, automation, and assembly processes. The cup's NBR-ESD material provides excellent electrical conductivity and resistance to wear and tear. With a compact size and lightweight design, it's easy to integrate into complex systems. This suction cup is ideal for handling small to medium-sized components, and its high-quality construction ensures consistent performance and long lifespan. Its applications range from electronics manufacturing to medical device assembly and more.
Top product features:
- Flat suction cup design allows for secure attachment to smooth surfaces
- Vacuum pressure of -0.6 bar provides strong holding force
- Pad material NBR-ESD offers electrostatic discharge protection
Top product applications:
- Automotive manufacturing: The flat suction cup is used to secure and position automotive parts during the manufacturing process.
- Electronics assembly: The suction cup is used to hold and align electronic components during the assembly process.
- Laboratory equipment: The flat suction cup is used to secure and position small laboratory equipment or samples during experiments.
Item Vacuum Pad Assembly, Durometer 55 A, Maximum Vacuum Pressure -0.6 bar, Number of Folds 0, Outside Diameter 10 mm, Overall Height 23.9 mm, Pad Color Yellow, Pad Diameter 11.2 mm, Hardness 55 Shore A, Pad Height 18.4 mm, Pad Material NBR-ESD, Pad Type Flat, Port Size M5, Port Type Metric, Series SUF, Stroke 1 mm, Weight 1.8 g
Additional Information
- Country of Origin: DE
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 13 days
- Minimum Order Quantity: 10
- Unit of Measure: EA
- Package Length: 11.25
- Package Width: 8.75
- Package Height: 6.00
- Package Weight: 0.04
Product info last updated on April 27, 2026 5:21am UTC
Category: Compressors, Air Tanks and Pneumatic Parts
