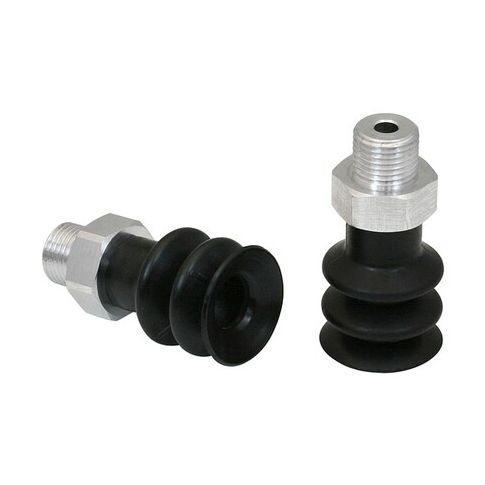

Bellow Suction Cup, 2.5 MPN:10.01.06.00026
Bellow Suction Cup, 2.5
The SCHMALZ Bellow Suction Cup is a versatile and reliable vacuum pad assembly designed for a variety of applications. Its multi-bellows design allows for a wide range of motion, making it ideal for use in robotics, automation, and other applications where precision and flexibility are crucial. The cup's high vacuum pressure and durable NBR material ensure a secure grip on surfaces, even in challenging environments. With its compact size and lightweight design, this suction cup is perfect for use in tight spaces and can be easily integrated into existing systems, making it a valuable asset for manufacturers and engineers.
Top product features:
- Multi-Bellows design for improved suction and flexibility
- Vacuum Pad Assembly with Adapter Material Aluminum for durability and strength
- Maximum Vacuum Pressure of -0.6 bar for effective gripping and holding capabilities
Top product applications:
- Vacuum pick and place machines
- Automotive manufacturing for bonding and sealing applications
- Medical device assembly for delicate components
Item Vacuum Pad Assembly, Adapter Material Aluminum, Durometer 55 A, Maximum Vacuum Pressure -0.6 bar, Number of Folds 2.5, Outside Diameter 18 mm, Overall Height 36.1 mm, Pad Color Black, Pad Diameter 19 mm, Hardness 55 Shore A, Pad Height 28.6 mm, Pad Material NBR, Pad Type Multi-Bellows, Port Size 1/8 in, Port Type G, Series FSG, Standards DIN ISO 3302-1 M3, Stroke 9 mm, Weight 5.6 g
Additional Information
- Country of Origin: DE
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 13 days
- Minimum Order Quantity: 10
- Unit of Measure: EA
- Package Length: 11.25
- Package Width: 8.75
- Package Height: 6.00
- Package Weight: 0.14
Product info last updated on May 5, 2026 8:38pm UTC
Category: Compressors, Air Tanks and Pneumatic Parts
